ESS-120-G-04 - SAMTEC

Description: Conn Socket Strip SKT 20 POS 2.54mm Solder ST Thru-Hole Bulk

Download ESS-120-G-04 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ESS-120-G-04 - SAMTEC - PCB symbol
click to zoom
PCB Footprints

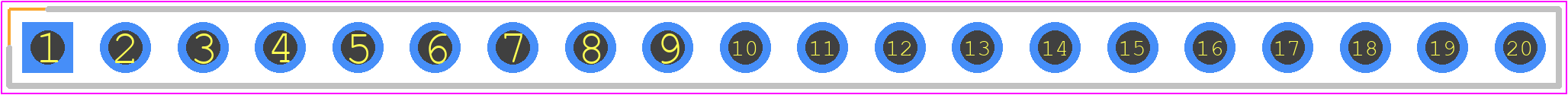

ESS-120-G-04 - SAMTEC PCB footprint - Header, Vertical - Header, Vertical - ESS-120-G-04
click to zoom
3D Models
ESS-120-G-04 - SAMTEC - 3D model - Header, Vertical - ESS-120-G-04
click to zoom

ESS-120-G-04 Details

  • Manufacturer Part Number:

    ESS-120-G-04

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    France, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    1 Week

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    9.1

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    GOLD (30) OVER NICKEL (50)

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Material:

    BERYLLIUM COPPER

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    20

ESS-120-G-04 Frequently Asked Questions (FAQs)

  • The recommended mating sequence is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
  • Yes, the ESS-120-G-04 connector is designed to withstand high-vibration environments. It has a ruggedized design and is suitable for use in applications with high shock and vibration.
  • The maximum operating temperature range for the ESS-120-G-04 connector is -55°C to +125°C. However, it's recommended to consult the datasheet for specific temperature ratings for your application.
  • The ESS-120-G-04 connector has a sealed design, but it's not fully waterproof. It's recommended to use additional sealing or protection methods if the connector will be exposed to high humidity or water.
  • The recommended torque for the ESS-120-G-04 connector's screws is 0.5-1.5 in-lbs (0.056-0.169 Nm). However, it's recommended to consult the datasheet or manufacturer's instructions for specific torque values.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ESS-120-G-04 Overview

Use the download button to access the ESS-120-G-04 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ESS-1, or try a keyword search, such as Headers and Edge Type Connectors
