ESS-120-G-05 - SAMTEC

Description: Conn Socket Strip SKT 20 POS 2.54mm Solder ST Top Entry Thru-Hole Bulk

Download ESS-120-G-05 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

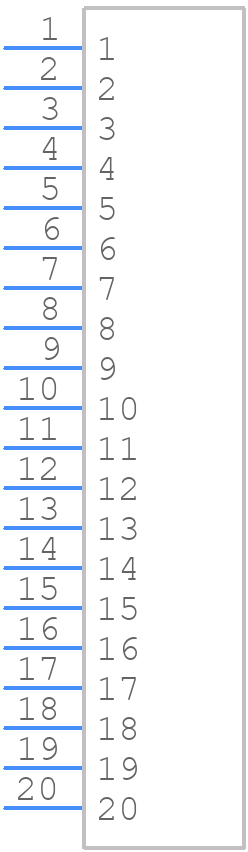

ESS-120-G-05 - SAMTEC - PCB symbol
click to zoom
PCB Footprints

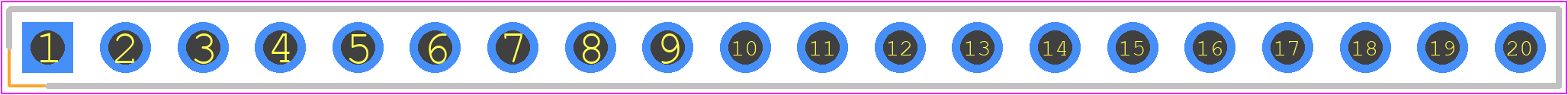

ESS-120-G-05 - SAMTEC PCB footprint - Header, Receptacle - Straight PTH Box - Header, Receptacle - Straight PTH Box - ESS-120-G-05
click to zoom
3D Models
ESS-120-G-05 - SAMTEC - 3D model - Header, Receptacle - Straight PTH Box - ESS-120-G-05
click to zoom

ESS-120-G-05 Details

  • Manufacturer Part Number:

    ESS-120-G-05

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Country Of Origin:

    France, Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    3 Weeks, 1 Day

  • Manufacturer:

    Samtec Inc

  • YTEOL:

    9.1

  • Body/Shell Style:

    SOCKET

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    GOLD (30) OVER NICKEL (50)

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Material:

    BERYLLIUM COPPER

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

  • Mating Information:

    MULTIPLE MATING PARTS AVAILABLE

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    20

ESS-120-G-05 Frequently Asked Questions (FAQs)

  • The recommended mating sequence is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
  • Handle the connector by the plastic body only, avoiding touching the contacts or guide pins. Use a vacuum pick-up tool or a soft, non-abrasive material to handle the connector during assembly.
  • The maximum operating temperature for the ESS-120-G-05 connector is 125°C (257°F), as specified in the Samtec datasheet.
  • Yes, the ESS-120-G-05 connector is designed to withstand high-vibration environments. However, it's essential to follow proper mounting and screw torque procedures to ensure reliable connections.
  • Use a soft, dry brush to remove any debris or dust from the connector. Avoid using liquids, chemicals, or abrasive materials that can damage the connector or its contacts.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ESS-120-G-05 Overview

Use the download button to access the ESS-120-G-05 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ESS-1, or try a keyword search, such as Headers and Edge Type Connectors
