EST1060T2R2NDGA - TAIYO YUDEN

Description: Power Inductors - SMD 963-LAYPH10060DL2R2N RPLCMT PN 1060 2.2uH 30% 7.5A AEC-Q200

Download EST1060T2R2NDGA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EST1060T2R2NDGA - TAIYO YUDEN - PCB symbol
click to zoom
PCB Footprints

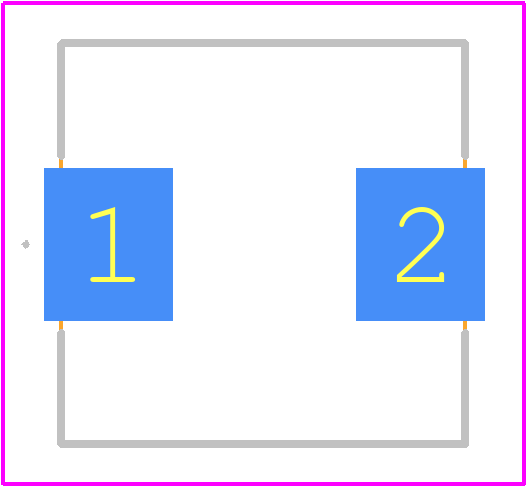

EST1060T2R2NDGA - TAIYO YUDEN PCB footprint - Other - Other - EST1060T2R2NDGA-3
click to zoom
3D Models
EST1060T2R2NDGA - TAIYO YUDEN - 3D model - Other - EST1060T2R2NDGA-3
click to zoom

EST1060T2R2NDGA Details

  • Manufacturer Part Number:

    EST1060T2R2NDGA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    11 Weeks

  • Manufacturer:

    TAIYO YUDEN

  • YTEOL:

    7

  • Case/Size Code:

    4039

  • Construction:

    Rectangular

  • Core Material:

    FERRITE

  • DC Resistance:

    0.009 Ω

  • Inductance-Nom (L):

    2.2 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    6 mm

  • Package Length:

    10.1 mm

  • Package Style:

    SMT

  • Package Width:

    10 mm

  • Packing Method:

    TR, EMBOSSED, 7 INCH

  • Rated Current-Max:

    7.5 A

  • Reference Standard:

    AEC-Q200

  • Self Resonance Frequency:

    76 MHz

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    YES

  • Surface Mount:

    YES

  • Terminal Placement:

    DUAL ENDED

  • Terminal Shape:

    WRAPAROUND

  • Test Frequency:

    0.1 MHz

  • Tolerance:

    30%

EST1060T2R2NDGA Frequently Asked Questions (FAQs)

  • The recommended land pattern for EST1060T2R2NDGA is a rectangular pad with a size of 1.6mm x 0.8mm, with a solder mask clearance of 0.1mm. The land pattern should be designed to accommodate the capacitor's dimensions and tolerances.
  • The EST1060T2R2NDGA capacitor is designed to handle high-frequency noise due to its low equivalent series resistance (ESR) and high self-resonant frequency (SRF). The capacitor's construction and materials are optimized to minimize parasitic inductance and capacitance, making it suitable for high-frequency applications.
  • Yes, the EST1060T2R2NDGA capacitor is suitable for automotive applications. It meets the requirements of the AEC-Q200 standard, which ensures that the capacitor can withstand the harsh environmental conditions and electrical stresses found in automotive systems.
  • The maximum operating temperature range for the EST1060T2R2NDGA capacitor is -55°C to +125°C. However, the capacitor's performance and lifespan may be affected by prolonged exposure to extreme temperatures.
  • The EST1060T2R2NDGA capacitor has a rated voltage of 50V, but it can be used in high-voltage applications with proper derating. The capacitor's voltage rating should be derated according to the application's voltage and temperature requirements to ensure reliable operation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EST1060T2R2NDGA Overview

Use the download button to access the EST1060T2R2NDGA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EST10, or try a keyword search, such as Fixed Inductors
