EST1060T470MDGA - TAIYO YUDEN

Description: 47 µH Shielded Drum Core, Wirewound Inductor 2.1 A 98mOhm Max Nonstandard

Download EST1060T470MDGA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EST1060T470MDGA - TAIYO YUDEN - PCB symbol
click to zoom
PCB Footprints

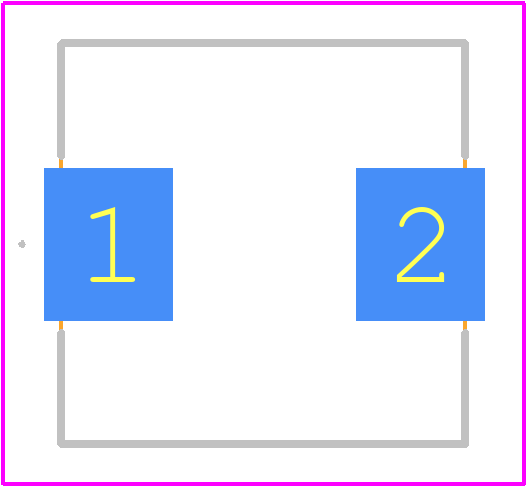

EST1060T470MDGA - TAIYO YUDEN PCB footprint - Other - Other - 10.1 X 10 X 6mm
click to zoom
3D Models
EST1060T470MDGA - TAIYO YUDEN - 3D model - Other - 10.1 X 10 X 6mm
click to zoom

EST1060T470MDGA Details

  • Manufacturer Part Number:

    EST1060T470MDGA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Manufacturer:

    TAIYO YUDEN

  • YTEOL:

    7

  • Case/Size Code:

    4039

  • Construction:

    Rectangular

  • Core Material:

    FERRITE

  • DC Resistance:

    0.098 Ω

  • Inductance-Nom (L):

    47 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Height:

    6 mm

  • Package Length:

    10.1 mm

  • Package Style:

    SMT

  • Package Width:

    10 mm

  • Packing Method:

    TR, EMBOSSED, 7 INCH

  • Rated Current-Max:

    2.1 A

  • Reference Standard:

    AEC-Q200

  • Self Resonance Frequency:

    7.2 MHz

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    YES

  • Surface Mount:

    YES

  • Terminal Placement:

    DUAL ENDED

  • Terminal Shape:

    WRAPAROUND

  • Test Frequency:

    0.1 MHz

  • Tolerance:

    20%

EST1060T470MDGA Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C for 10 seconds or less, to prevent damage to the capacitor.
  • Yes, EST1060T470MDGA is suitable for high-frequency applications up to 1 GHz due to its low equivalent series resistance (ESR) and high self-resonant frequency.
  • The capacitance value of EST1060T470MDGA decreases by approximately 10% from 25°C to 85°C, and by approximately 20% from 25°C to 125°C, due to the temperature coefficient of the ceramic material.
  • Yes, EST1060T470MDGA meets the requirements of the AEC-Q200 standard for automotive applications, including high reliability and resistance to vibration and shock.
  • Yes, EST1060T470MDGA can be used in series or parallel configurations to achieve higher voltage ratings or increased capacitance values, but careful consideration must be given to the overall equivalent series resistance (ESR) and inductance of the configuration.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EST1060T470MDGA Overview

Use the download button to access the EST1060T470MDGA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EST10, or try a keyword search, such as Fixed Inductors
