ESW-132-23-G-D footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

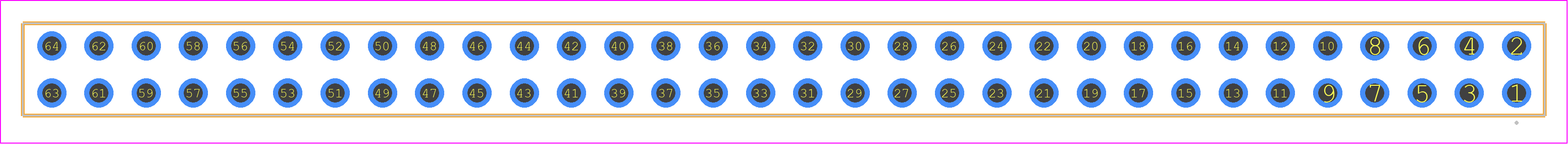

PCB Footprints

ESW-132-23-G-D - SAMTEC PCB footprint - Other - Other - ESW-132-XX-Y-D

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ESW-132-23-G-D
Part Number ESW-132-23-G-D
Manufacturer SAMTEC
Pin Count 64
Part Category Connector
Package Category Other
Footprint Name Other - ESW-132-XX-Y-D
Released Date Jun 1, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

ESW-132-23-G-D Details

Manufacturer Part Number:
ESW-132-23-G-D
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Malaysia, Vietnam
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
1 Week
Manufacturer:
Samtec Inc
YTEOL:
8
Body Breadth:
0.912 inch
Body Depth:
0.435 inch
Body Length:
3.22 inch
Body/Shell Style:
SOCKET
Connector Type:
BOARD CONNECTOR
Contact Pattern:
RECTANGULAR
Contact Style:
SQ PIN-SKT
Filter Feature:
NO
Mating Contact Pitch:
0.1 inch
Mixed Contacts:
NO
Mounting Style:
STRAIGHT
Number Of PCB Rows:
2
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
PCB Contact Row Spacing:
2.54 mm
Rated Current (Signal):
5.2 A
Terminal Pitch:
2.54 mm

ESW-132-23-G-D Frequently Asked Questions (FAQs)

The recommended torque for the screws on the ESW-132-23-G-D connector is 1.5-2.5 in-lbs (0.17-0.28 Nm) according to Samtec's application notes.
Yes, the ESW-132-23-G-D connector is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper screw torque to ensure reliable connections.
The maximum operating temperature for the ESW-132-23-G-D connector is 125°C (257°F) according to Samtec's datasheet. However, it's recommended to derate the connector's current-carrying capacity at higher temperatures.
The ESW-132-23-G-D connector has a moisture-resistant design, but it's not fully waterproof. Samtec recommends applying a conformal coating or potting compound to protect the connector from moisture and humidity.
The recommended mating cycle for the ESW-132-23-G-D connector is 500-1000 cycles, depending on the application and environmental conditions. Samtec recommends following their guidelines for connector mating and unmating to ensure reliable connections.
