- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for ET1200
- Part Number ET1200
- Manufacturer Beckhoff
- Pin Count 49
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - 48 pin QFN
- Released Date Nov 19, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
ET1200 Details
-
Manufacturer Part Number:
ET1200
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Contact Manufacturer
-
Package Description:
QFN-48
-
HTS Code:
8542.31.00.30
-
Manufacturer:
Beckhoff Automation GmbH
-
JESD-30 Code:
S-XQCC-N48
-
Length:
7 mm
-
Number of Terminals:
48
-
Operating Temperature-Max:
85 °C
-
Operating Temperature-Min:
-40 °C
ET1200 Frequently Asked Questions (FAQs)
-
The maximum cable length for the EtherCAT interface is 100 meters, but it can be extended up to 6 kilometers using fiber optic cables and media converters.
-
Yes, the ET1200 is designed for industrial use and can operate in temperatures ranging from -25°C to 60°C, and can withstand vibrations and shocks according to IEC 60068-2-6 and IEC 60068-2-27.
-
The ET1200 can be configured using the Beckhoff TwinCAT software, which provides a graphical interface for setting up the EtherCAT network and configuring the ET1200 for use with a specific EtherCAT master.
-
The ET1200 can support up to 65,535 EtherCAT slaves, but the actual number of slaves that can be connected depends on the specific application and the performance requirements of the system.
-
No, the ET1200 is specifically designed for use with the EtherCAT protocol and is not compatible with other industrial Ethernet protocols such as PROFINET, EtherNet/IP, or Modbus TCP.
Trust Checks
Community Provided
System Verified
Community Approved
ET1200 Overview

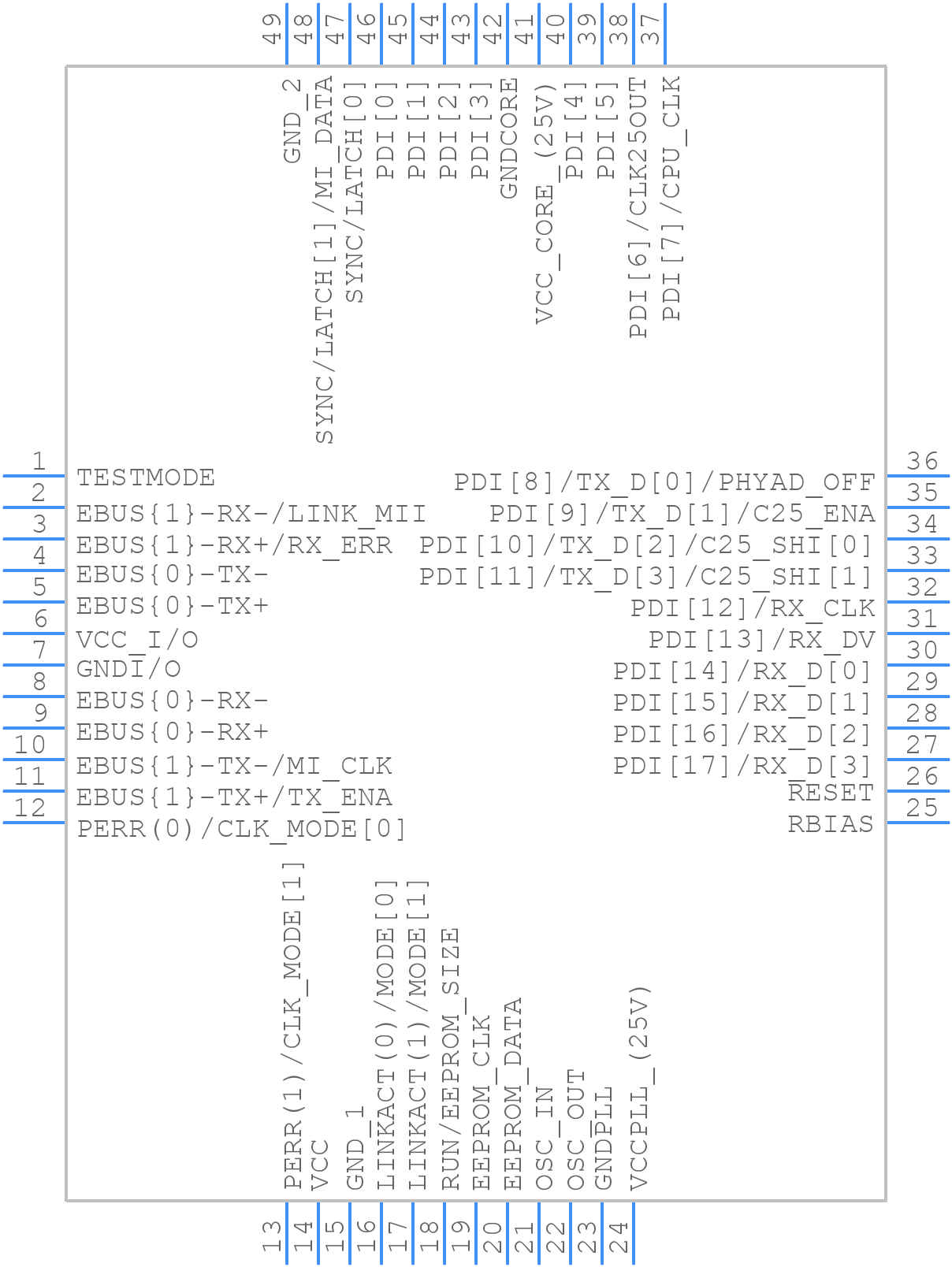

Use the download button to access the ET1200 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ET120,
or try a keyword search, such as Other uPs/uCs/Peripheral ICs
