The recommended mating sequence for the ET60T-D06-0-00-D06-L-R1-S connector is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
Yes, the ET60T-D06-0-00-D06-L-R1-S connector is designed to withstand high-vibration environments. It has a ruggedized design and is suitable for use in applications with high shock and vibration, such as in aerospace, industrial, or automotive systems.
The ET60T-D06-0-00-D06-L-R1-S connector has an operating temperature range of -55°C to +125°C, making it suitable for use in a wide range of applications, including those with extreme temperature requirements.
Yes, the ET60T-D06-0-00-D06-L-R1-S connector is compatible with lead-free soldering processes. Samtec Inc. recommends following the recommended soldering profile and procedures to ensure reliable connections.
The ET60T-D06-0-00-D06-L-R1-S connector has a sealed design that provides some level of protection against moisture and humidity. However, it is not designed for use in submerged or continuously wet environments. If you need a connector for use in harsh environmental conditions, consider using a connector with additional sealing or waterproofing features.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
ET60T-D06-0-00-D06-L-R1-S Overview

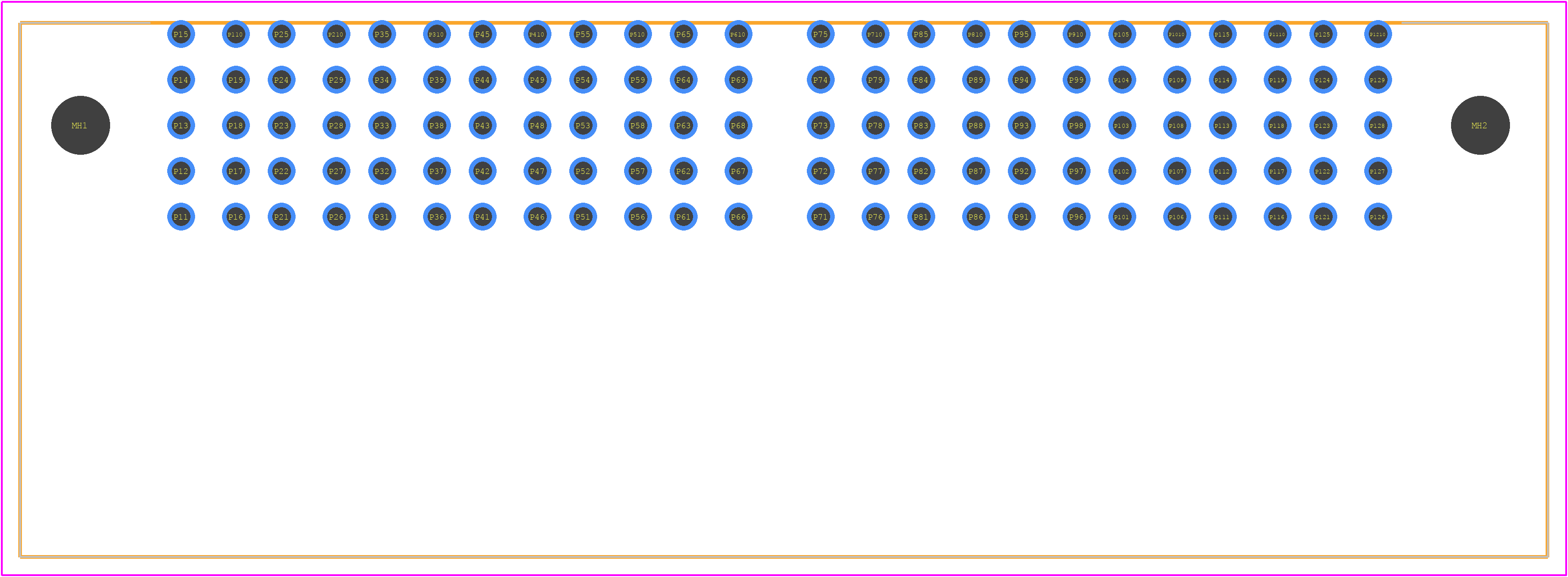

Use the download button to access the ET60T-D06-0-00-D06-L-R1-S schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ET60T,
or try a keyword search, such as Headers and Edge Type Connectors
