ET74HC595 - ETEK

Description: Low quiescent current: 80µA maximum ⚫ Low input current: 1µA maximum ⚫ 8-bit serial-in, parallel-out shift register with storage ⚫ Wide operating voltage range: 2.0V to 6.0V ⚫ Shift register has direct clear ⚫ Guaranteed shift frequency: DC to 30 MHz

Download ET74HC595 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this ET74HC595 model

Email notifications will be applied after download.

Send part feedback

Symbol

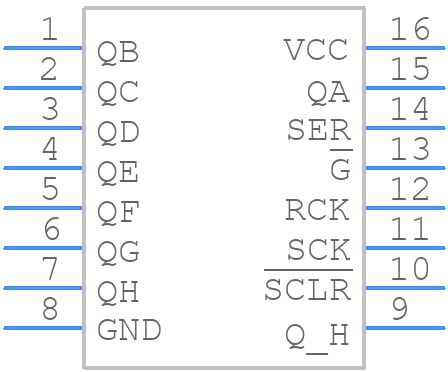

ET74HC595 - ETEK - PCB symbol

PCB Footprints

ET74HC595 - ETEK PCB footprint - Small Outline Packages - Small Outline Packages - SOP16..

3D Models

ET74HC595 - ETEK - 3D model - Small Outline Packages - SOP16..

Datasheet Download Datasheet
Stock & Prices Price & Stock for ET74HC595
Part Number ET74HC595
Manufacturer ETEK
Pin Count 16
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - SOP16..
Released Date Mar 21, 2025
Last Modified Date Mar 21, 2025 9:28 AM UTC
Pinout / Pin List Click Here (Member Only)

ET74HC595 Details

Manufacturer Part Number:
ET74HC595
Manufacturer:
ETEK International

Trust Checks

Community Provided

System Verified

Community Approved

ET74HC595 Overview

Use the download button to access the ET74HC595 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ET74H, or try a keyword search, such as FF/Latches
