- Part Number ETC1-1-13
- Manufacturer TE Connectivity
- Pin Count 5
- Part Category Transformer
- Package Category Other
- Footprint Name Other - ETC1-1-13-2
- Released Date Apr 19, 2021
- Last Modified Date Jun 22, 2023 10:55 AM UTC
- Pinout / Pin List Click Here (Member Only)
ETC1-1-13 Details
-
Manufacturer Part Number:
ETC1-1-13
-
Part Life Cycle Code:
Obsolete
-
ECCN Code:
EAR99
-
Manufacturer:
TE Connectivity
-
YTEOL:
0
-
Additional Feature:
IMPEDANCE RATIO IS 1:1
-
Cut-off Frequency-Max:
3000 MHz
-
Cut-off Frequency-Min:
4.5 MHz
-
Height:
2.79 mm
-
Insertion Loss:
3.5 dB
-
Length:
3.81 mm
ETC1-1-13 Frequently Asked Questions (FAQs)
-
The recommended torque for the screw terminals is 0.5-0.8 Nm (4.4-7.0 in-lbs).
-
Yes, the ETC1-1-13 is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10 G peak acceleration.
-
Yes, the ETC1-1-13 has a rating of IP67, which means it is protected against dust and water immersion up to 1 meter for 30 minutes.
-
The maximum operating temperature of the ETC1-1-13 is 125°C (257°F).
-
No, the ETC1-1-13 is designed for wire sizes up to 1.5 mm² (16 AWG). Using a larger wire size may compromise the connector's performance and reliability.
Trust Checks
System Verified
ETC1-1-13 Overview

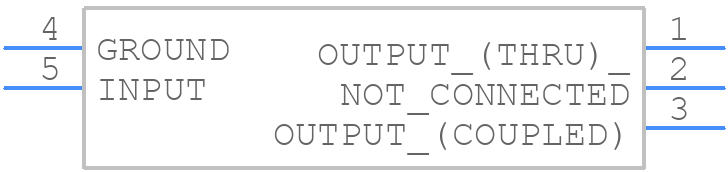

Use the download button to access the ETC1-1-13 schematic symbol, PCB footprint, and 3D model.
