ETC1-1T-5TR footprint, schematic symbol and 3D model by MACOM

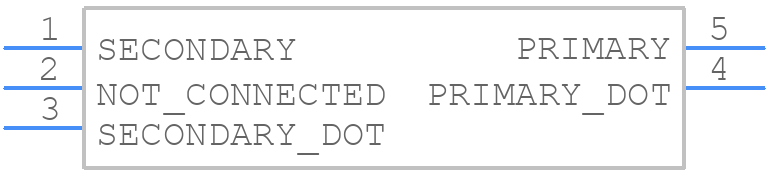

Symbol

PCB Footprints

3D Models

ETC1-1T-5TR Details

MACOM recommends a 4-layer PCB with a solid ground plane, and a microstrip transmission line design to minimize signal loss and ensure optimal performance.
The ETC1-1T-5TR requires a bias voltage of 5V and a bias current of 10mA. Ensure the bias circuit is designed to provide a stable voltage and current to the device.
The ETC1-1T-5TR is rated for operation from -40°C to +85°C. Operating the device outside this range may affect its performance and reliability.
MACOM recommends using ESD protection devices, such as TVS diodes, to protect the ETC1-1T-5TR from electrostatic discharge. Follow proper handling and storage procedures to prevent ESD damage.
MACOM recommends a soldering profile with a peak temperature of 260°C, a dwell time of 30 seconds, and a cooling rate of 4°C/second to prevent thermal damage to the device.

Expert Contribution

System Verified

Community Approved

Use the download button to access the ETC1-1T-5TR schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ETC1-, or try a keyword search, such as RF Transformers

If you searched for ETC1-1T-5TR, you might also be interested in these parts:

Showing 0 results

Image	Part Number	Model
	ETC1-1T-5 TE Connectivity RF Transformer, 2MHz Min, 500MHz Max, 1:1
For a full list of alternate parts for ETC1-1T-5TR, check out Findchips.com
