ETH1-460LB - COILCRAFT

Description: Audio Transformers / Signal Transformers ETH1 60W 4pairs PoE+ Magnetic Module

Download ETH1-460LB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

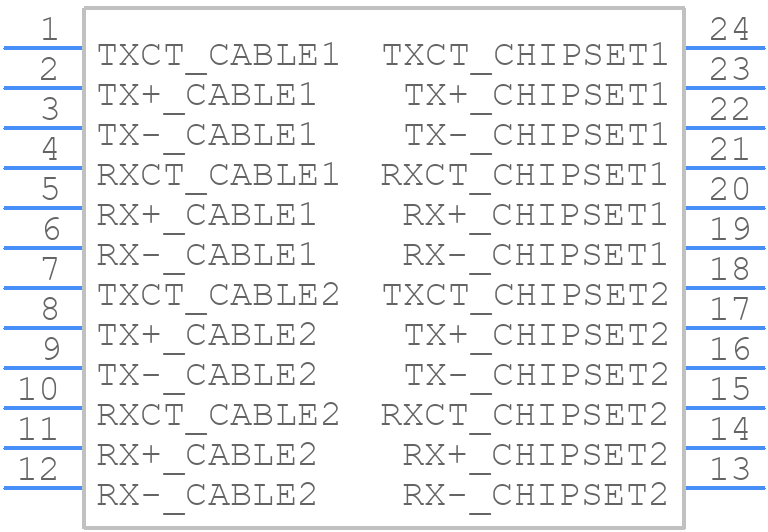

Symbol
ETH1-460LB - COILCRAFT - PCB symbol
click to zoom
PCB Footprints
ETH1-460LB - COILCRAFT PCB footprint - Other - Other - ETH1-460LB-2
click to zoom
3D Models
ETH1-460LB - COILCRAFT - 3D model - Other - ETH1-460LB-2
click to zoom

ETH1-460LB Details

  • Manufacturer Part Number:

    ETH1-460LB

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    CHIP

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    0

  • Additional Feature:

    WIDTH AND HEIGHT DIMENSION INCLUDES TERMINAL ALSO

  • Height:

    10.16 mm

  • Length:

    18.6 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    4

  • Number of Secondary Winding:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Packing Method:

    TR

  • Power Rating:

    120 W

  • Primary Inductance:

    350 µH

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver/Copper - Tin - with Nickel barrier

  • Transformer Type:

    SMPS TRANSFORMER

  • Width:

    16.5 mm

ETH1-460LB Frequently Asked Questions (FAQs)

  • The recommended PCB land pattern for the ETH1-460LB is a rectangular pad with a minimum size of 50 mils x 30 mils (1.27 mm x 0.76 mm) with a non-solder mask defined (NSMD) pad shape.
  • To minimize the impact of PCB layout and proximity to other components, keep the ETH1-460LB at least 10 mm away from other components, use a solid ground plane, and avoid routing high-frequency signals near the inductor.
  • The ETH1-460LB has an operating temperature range of -40°C to +125°C, but derating is required above 85°C to ensure reliable operation.
  • Use a soldering iron with a temperature of 250°C to 270°C, and apply a small amount of solder paste to the PCB pad. Ensure the inductor is properly aligned and seated on the pad before soldering.
  • Store the ETH1-460LB in a dry, cool place, away from direct sunlight and moisture. Handle the components by the body, avoiding touching the leads or electrical contacts.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ETH1-460LB Overview

Use the download button to access the ETH1-460LB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ETH1-, or try a keyword search, such as SMPS Transformers

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
