ETMM-120-02-F-D-TH-LC footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

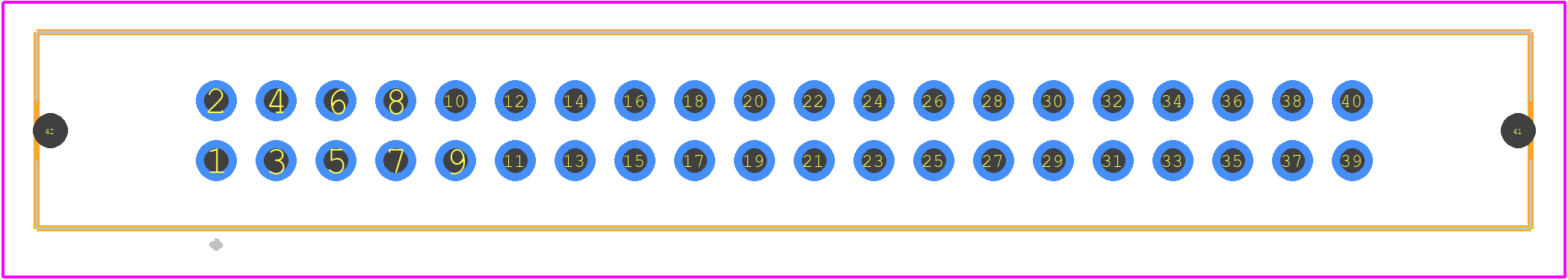

PCB Footprints

ETMM-120-02-F-D-TH-LC - SAMTEC PCB footprint - Other - Other - ETMM-120-02-F-D-TH-LC

click to zoom

3D Models

ETMM-120-02-F-D-TH-LC - SAMTEC - 3D model - Other - ETMM-120-02-F-D-TH-LC

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ETMM-120-02-F-D-TH-LC
Part Number ETMM-120-02-F-D-TH-LC
Manufacturer SAMTEC
Pin Count 40
Part Category Connector
Package Category Other
Footprint Name Other - ETMM-120-02-F-D-TH-LC
Released Date Jun 28, 2018
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

ETMM-120-02-F-D-TH-LC Details

Manufacturer Part Number:
ETMM-120-02-F-D-TH-LC
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT
Country Of Origin:
Malaysia
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
Samtec Inc
YTEOL:
9
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
TIN OVER NICKEL
Contact Finish Termination:
Tin (Sn) - with Nickel (Ni) barrier
Contact Gender:
MALE
Contact Material:
NOT SPECIFIED
Contact Pattern:
RECTANGULAR
Contact Style:
SQ PIN-SKT
Filter Feature:
NO
Insulator Color:
BLACK
Insulator Material:
LIQUID CRYSTAL POLYMER
JESD-609 Code:
e3
Mating Contact Pitch:
0.079 inch
Mating Contact Row Spacing:
0.079 inch
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
STRAIGHT
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
2
Number of Rows Loaded:
2
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-55 °C
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
2.0066 mm
Plating Thickness:
3u inch
Polarization Key:
POLARIZED HOUSING
Terminal Pitch:
2.0066 mm
Termination Type:
SOLDER
Total Number of Contacts:
24

ETMM-120-02-F-D-TH-LC Frequently Asked Questions (FAQs)

The recommended torque for the screws on the ETMM-120-02-F-D-TH-LC connector is 0.5-1.5 in-lbs (0.056-0.169 Nm) according to Samtec's application notes.
Yes, the ETMM-120-02-F-D-TH-LC connector is designed to withstand high-vibration environments. Samtec recommends following their guidelines for vibration testing and ensuring proper mounting and screw torque to ensure reliable operation.
The maximum operating temperature for the ETMM-120-02-F-D-TH-LC connector is 125°C (257°F) according to the datasheet. However, it's recommended to derate the operating temperature based on the specific application and environmental conditions.
The ETMM-120-02-F-D-TH-LC connector has a moisture-resistant design, but it's not fully waterproof. Samtec recommends following their guidelines for environmental sealing and using additional protection measures if the connector will be exposed to high humidity or water.
The recommended mating cycle for the ETMM-120-02-F-D-TH-LC connector is 500-1000 cycles according to Samtec's application notes. However, this may vary depending on the specific application and environmental conditions.

Trust Checks

Expert Contribution

System Verified

Community Approved

ETMM-120-02-F-D-TH-LC Overview

Use the download button to access the ETMM-120-02-F-D-TH-LC schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ETMM-, or try a keyword search, such as Headers and Edge Type Connectors
