ETQ-PAMR33JFW - Panasonic

Description: Large current Power Choke Coil for Automotive (MC type) , Size [LÃ—ï¼·] (mm): 15.6Ã—17.2, Height (mm): 10, Inductance (?H): 0.33, DC Resistance [Typ.] (at 20â„ƒ) (m?): 0.42, DC Resistance [max.] (at 20â„ƒ) (m?): 0.48, Rated Current [Typ.] (Î”T=40K, High heat dissipation PWB) (A): 83, Rated Current [Typ.] (Î”L=?30%) (A): 103, AEC-Q200 compliant

Download ETQ-PAMR33JFW Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this ETQ-PAMR33JFW model

Email notifications will be applied after download.

Send part feedback

Symbol

ETQ-PAMR33JFW - Panasonic - PCB symbol

PCB Footprints

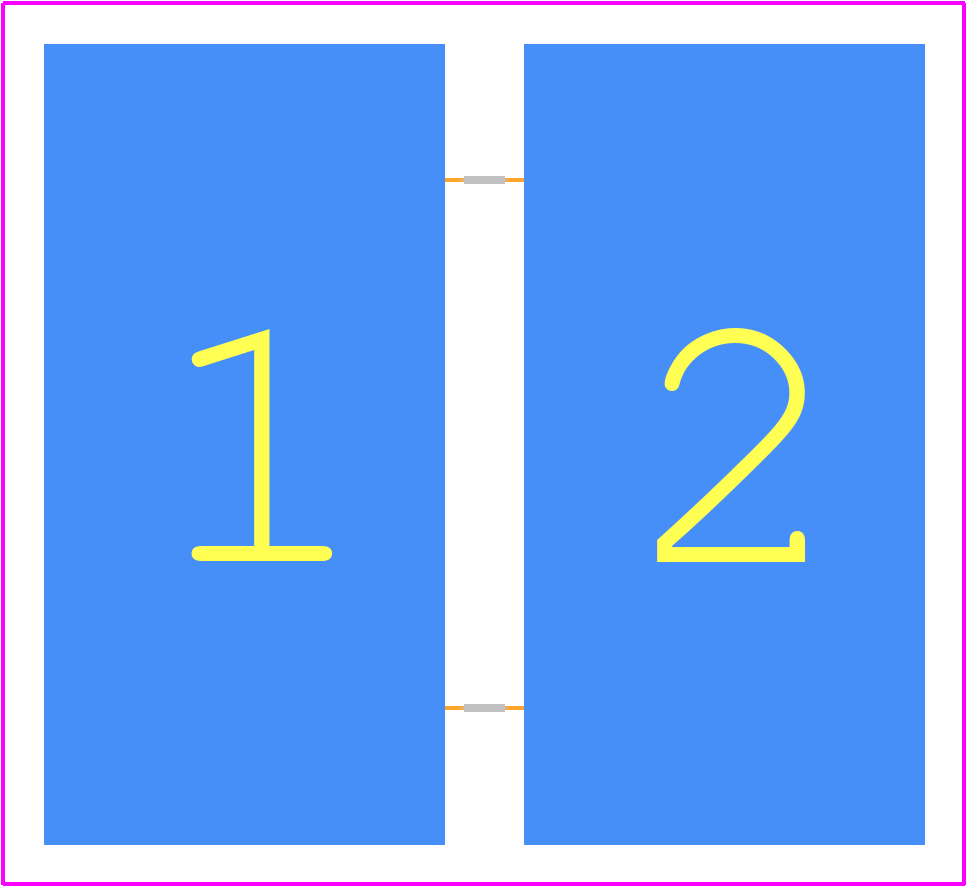

ETQ-PAMR33JFW - Panasonic PCB footprint - Other - Other - ETQ-P8M1R0JFA-1

3D Models

ETQ-PAMR33JFW - Panasonic - 3D model - Other - ETQ-P8M1R0JFA-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for ETQ-PAMR33JFW
Part Number ETQ-PAMR33JFW
Manufacturer Panasonic
Pin Count 2
Part Category Inductor
Package Category Other
Footprint Name Other - ETQ-P8M1R0JFA-1
Released Date Jul 13, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

ETQ-PAMR33JFW Details

Manufacturer Part Number:
ETQ-PAMR33JFW
Manufacturer:
Panasonic Electronic Components

Trust Checks

Expert Contribution

System Verified

Community Approved

ETQ-PAMR33JFW Overview

Use the download button to access the ETQ-PAMR33JFW schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ETQ-P, or try a keyword search, such as Fixed Inductors
