ETQP4M100KFM - Panasonic

Description: Power Choke Coil, Automotive Grade, 10uF

Download ETQP4M100KFM Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

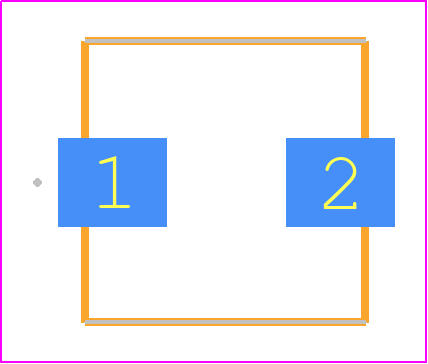

ETQP4M100KFM - Panasonic PCB footprint - Other - Other - ETQ-P4M_KFM
click to zoom
3D Models
ETQP4M100KFM - Panasonic  - 3D model - Other - ETQ-P4M_KFM
click to zoom

ETQP4M100KFM Details

  • Manufacturer Part Number:

    ETQP4M100KFM

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    23 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    7

  • Case/Size Code:

    2928

  • Construction:

    Rectangular

  • Core Material:

    METAL COMPOSITE

  • DC Resistance:

    0.0396 Ω

  • Inductance-Nom (L):

    10 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Height:

    4.8 mm

  • Package Length:

    7.4 mm

  • Package Style:

    SMT

  • Package Width:

    7 mm

  • Packing Method:

    TR, EMBOSSED, 13 INCH

  • Rated Current-Max:

    6 A

  • Reference Standard:

    AEC-Q200

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    YES

  • Special Feature:

    DC RESISTANCE IS MEASURED AT 10%

  • Surface Mount:

    YES

  • Terminal Placement:

    DUAL ENDED

  • Terminal Shape:

    WRAPAROUND

  • Test Frequency:

    0.1 MHz

  • Tolerance:

    20%
