ETQP5MR68YSC - Panasonic

Description: Power Choke Coil, Automotive Grade, 0.68uF

Download ETQP5MR68YSC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

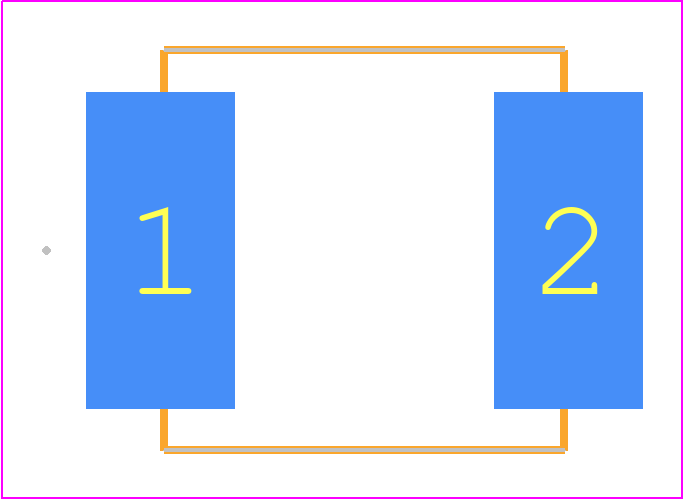

ETQP5MR68YSC - Panasonic PCB footprint - Other - Other - ETQP5M_YSC
click to zoom
3D Models
ETQP5MR68YSC - Panasonic  - 3D model - Other - ETQP5M_YSC
click to zoom

ETQP5MR68YSC Details

  • Manufacturer Part Number:

    ETQP5MR68YSC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    23 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    8

  • Case/Size Code:

    4339

  • Construction:

    Rectangular

  • Core Material:

    METAL COMPOSITE

  • DC Resistance:

    0.00183 Ω

  • Inductance-Nom (L):

    0.68 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    170 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Height:

    5 mm

  • Package Length:

    10.9 mm

  • Package Style:

    SMT

  • Package Width:

    10 mm

  • Packing Method:

    TR, EMBOSSED, 13 INCH

  • Rated Current-Max:

    32.3 A

  • Reference Standard:

    AEC-Q200

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    YES

  • Special Feature:

    DC RESISTANCE IS MEASURED AT: 10%

  • Surface Mount:

    YES

  • Terminal Placement:

    DUAL ENDED

  • Terminal Shape:

    WRAPAROUND

  • Test Frequency:

    0.1 MHz

  • Tolerance:

    20%

ETQP5MR68YSC Frequently Asked Questions (FAQs)

  • The recommended land pattern for ETQP5MR68YSC can be found in the Panasonic recommended land pattern document or by consulting with a PCB design expert. The land pattern should ensure proper soldering and thermal management.
  • Proper thermal management is crucial for ETQP5MR68YSC. Ensure good thermal conductivity by using a thermal pad or thermal interface material, and design the PCB to dissipate heat efficiently. Consult the datasheet for thermal resistance and junction temperature values.
  • The maximum operating temperature range for ETQP5MR68YSC is -40°C to 125°C. However, it's essential to consider the derating curves and thermal management to ensure reliable operation within this range.
  • While ETQP5MR68YSC is a robust component, it's essential to consider the vibration specifications and ensure proper mounting and PCB design to minimize the risk of mechanical stress and damage.
  • The recommended decoupling capacitor value for ETQP5MR68YSC depends on the specific application and operating frequency. Consult the datasheet and application notes for guidance on selecting the appropriate capacitor value and placement.
