ETQP8M3R3JFA - Panasonic

Description: Power Choke Coil, Automotive Grade, 3.3uF

Download ETQP8M3R3JFA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

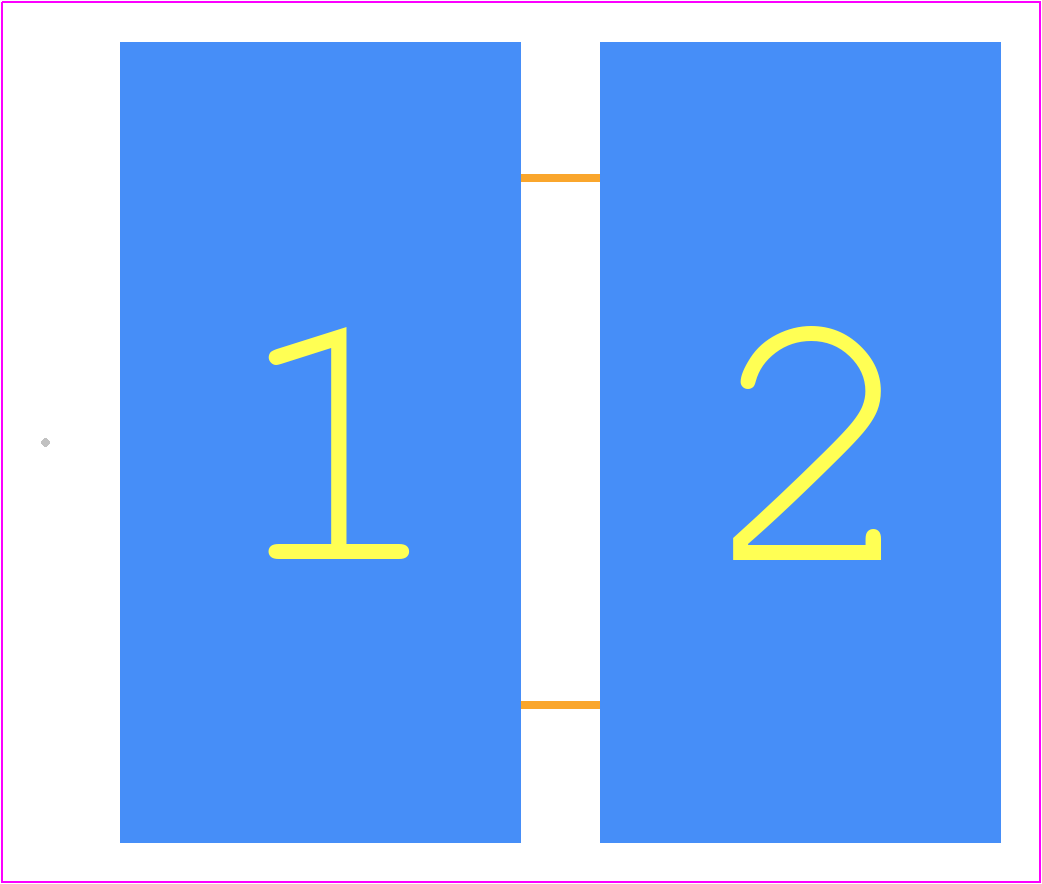

ETQP8M3R3JFA - Panasonic PCB footprint - Other - Other - ETQP8
click to zoom
3D Models
ETQP8M3R3JFA - Panasonic  - 3D model - Other - ETQP8
click to zoom

ETQP8M3R3JFA Details

  • Manufacturer Part Number:

    ETQP8M3R3JFA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.50.80.00

  • Factory Lead Time:

    23 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    7

  • Case/Size Code:

    5250

  • Construction:

    Rectangular

  • Core Material:

    METAL COMPOSITE

  • DC Resistance:

    0.00396 Ω

  • Inductance-Nom (L):

    3.3 µH

  • Inductor Application:

    POWER INDUCTOR

  • Inductor Type:

    GENERAL PURPOSE INDUCTOR

  • Number of Functions:

    1

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    160 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Height:

    8 mm

  • Package Length:

    13.1 mm

  • Package Style:

    SMT

  • Package Width:

    12.6 mm

  • Packing Method:

    TR, EMBOSSED, 13 INCH

  • Rated Current-Max:

    23.6 A

  • Reference Standard:

    AEC-Q200

  • Shape/Size Description:

    RECTANGULAR PACKAGE

  • Shielded:

    YES

  • Special Feature:

    DC RESISTANCE IS MEASURED AT: 10%

  • Surface Mount:

    YES

  • Terminal Placement:

    DUAL ENDED

  • Terminal Shape:

    WRAPAROUND

  • Test Frequency:

    0.1 MHz

  • Tolerance:

    20%

ETQP8M3R3JFA Frequently Asked Questions (FAQs)

  • The recommended land pattern for ETQP8M3R3JFA is a rectangular pad with a size of 2.5mm x 1.5mm, with a non-solder mask defined (NSMD) pad shape. This ensures reliable soldering and minimizes the risk of solder bridging.
  • To ensure proper thermal management, it's recommended to provide a thermal pad on the PCB with a size of at least 5mm x 5mm, and to use a thermal interface material (TIM) with a thermal conductivity of at least 1 W/m-K. Additionally, ensure good airflow around the component and consider using a heat sink if necessary.
  • The maximum operating temperature range for ETQP8M3R3JFA is -40°C to +125°C. However, it's recommended to operate the component within the range of -20°C to +85°C for optimal performance and reliability.
  • Yes, ETQP8M3R3JFA is designed to withstand vibrations up to 10G (10 times the acceleration due to gravity) in the frequency range of 10Hz to 2000Hz. However, it's recommended to perform additional testing and validation to ensure the component's reliability in your specific application.
  • To ensure the reliability of ETQP8M3R3JFA in a humid environment, it's recommended to apply a conformal coating to the PCB, use a moisture-resistant packaging material, and follow proper storage and handling procedures. Additionally, consider using a humidity sensor to monitor the environment and take corrective action if necessary.
