EVQPLFA08 - Panasonic

Description: Orange Push Plate Tactile Switch, SPST 20 mA @ 15 V dc 0.8mm Surface Mount

Download EVQPLFA08 Model

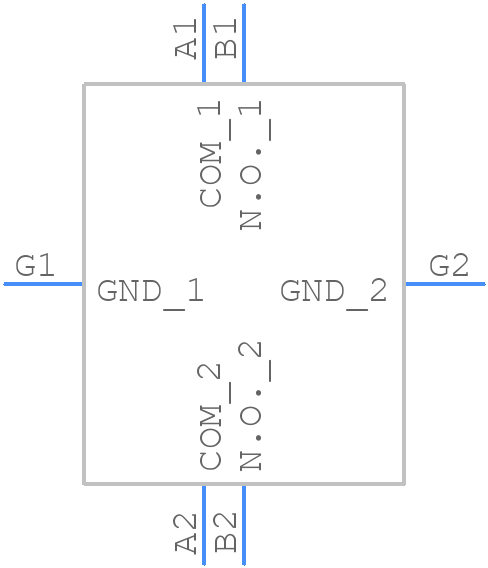

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
EVQPLFA08 - Panasonic PCB footprint - Other - Other - EVQ5PLA08
click to zoom
3D Models
EVQPLFA08 - Panasonic  - 3D model - Other - EVQ5PLA08
click to zoom

EVQPLFA08 Details

  • Manufacturer Part Number:

    EVQPLFA08

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Japan, Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.50.90.40

  • Factory Lead Time:

    21 Weeks, 1 Day

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    8

  • Body Breadth:

    4.9 mm

  • Body Height:

    0.8 mm

  • Body Length or Diameter:

    4.9 mm

  • Circuit Configuration:

    1X1

  • Contact Bounce Time-Max:

    8 ms

  • Contact Current(DC)-Max:

    0.02 A

  • Contact (DC) Max Rating R Load:

    .02A@15VDC

  • Contact Voltage(DC)-Max:

    15 V

  • Electrical Life:

    500000 Cycle(s)

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT-STRAIGHT

  • Number of Switches:

    1

  • Operating Force-Max:

    2.1 N

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -20 °C

  • Packing Method:

    BOX; TAPE AND REEL

  • Surface Mount:

    NO

  • Switch Action:

    MOMENTARY

  • Switch Function:

    SPST

  • Switch Type:

    KEYPAD SWITCH

  • Terminal Finish:

    GOLD/SILVER

  • Termination Type:

    SOLDER
