Panasonic provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure proper thermal management, signal integrity, and reliability.
The EVQPT9A15 has a high power dissipation rating. To manage thermal issues, ensure good airflow, use a heat sink or thermal pad, and follow Panasonic's recommended thermal design guidelines.
The maximum operating temperature range for the EVQPT9A15 is -40°C to 125°C. However, it's essential to derate the device's power dissipation according to the temperature to ensure reliability and prevent thermal runaway.
The EVQPT9A15 is designed to withstand moderate vibration levels. However, for high-vibration environments, it's recommended to use additional mechanical support, such as a bracket or clamp, to ensure the device remains securely attached to the PCB.
The EVQPT9A15 is an electrostatic discharge (ESD) sensitive device. Handle the device with ESD-protective equipment, such as wrist straps and mats, and follow proper ESD handling procedures to prevent damage.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EVQPT9A15 Overview

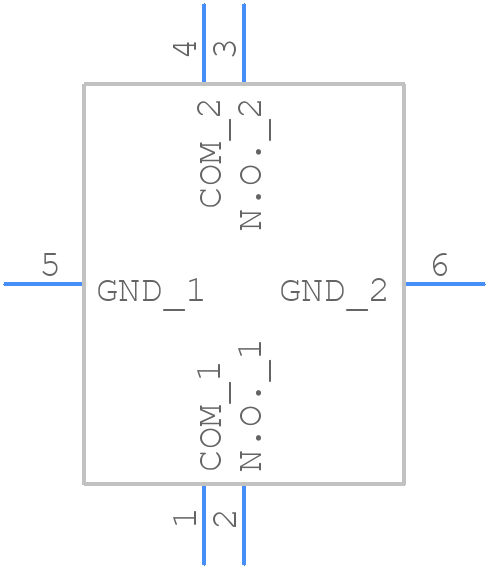

Use the download button to access the EVQPT9A15 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EVQPT,
or try a keyword search, such as Keypad Switches
