Part Image

EWTS5G-HP - Panasonic

Description: Product: 6DoF Inertial Sensor for Automotive (6in1 Sensor), Series/Type: EWTS5G HP (High performance) type, Size [LxWxH] (mm): 4.5ｘ4.5ｘ1.1, Operation temperature (°C): -40 to +125, Operation voltage [DC] (V): 3.3 +/- 0.3, Current consumption (mA): 10 or less, Data interface: SPI

Download EWTS5G-HP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EWTS5G-HP - Panasonic - PCB symbol
click to zoom

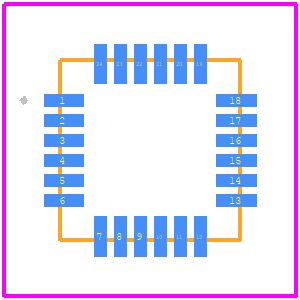

PCB Footprints
EWTS5G-HP - Panasonic PCB footprint - Other - Other - EWTS5G-3
click to zoom
3D Models
EWTS5G-HP - Panasonic - 3D model - Other - EWTS5G-3
click to zoom

EWTS5G-HP Details

  • Manufacturer Part Number:

    EWTS5G-HP

  • Manufacturer:

    Panasonic Electronic Components

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EWTS5G-HP Overview

Use the download button to access the EWTS5G-HP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EWTS5, or try a keyword search, such as Other Sensors/Transducers
