Panasonic recommends a symmetrical PCB layout with a solid ground plane, and to keep the antenna away from other components and metal objects. A minimum of 10mm clearance around the module is recommended.
The EWTS5G module can be configured for different frequency bands using the AT command set. The module supports multiple frequency bands, including LTE-M, NB-IoT, and GSM. Refer to the AT command manual for specific configuration details.
The power consumption of the EWTS5G module varies depending on the mode. In idle mode, the power consumption is around 1mA. In transmit mode, the power consumption is around 200mA. In sleep mode, the power consumption is around 0.1mA. Refer to the datasheet for detailed power consumption specifications.
The EWTS5G module supports secure communication protocols such as SSL/TLS and HTTPS. Additionally, the module has a built-in SIM card slot that supports SIM card-based authentication. Implementing secure communication requires configuring the module to use these protocols and features.
The maximum data transfer rate of the EWTS5G module depends on the frequency band and network conditions. In LTE-M mode, the maximum data transfer rate is up to 1Mbps. In NB-IoT mode, the maximum data transfer rate is up to 27kbps. In GSM mode, the maximum data transfer rate is up to 85.6kbps.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EWTS5G Overview

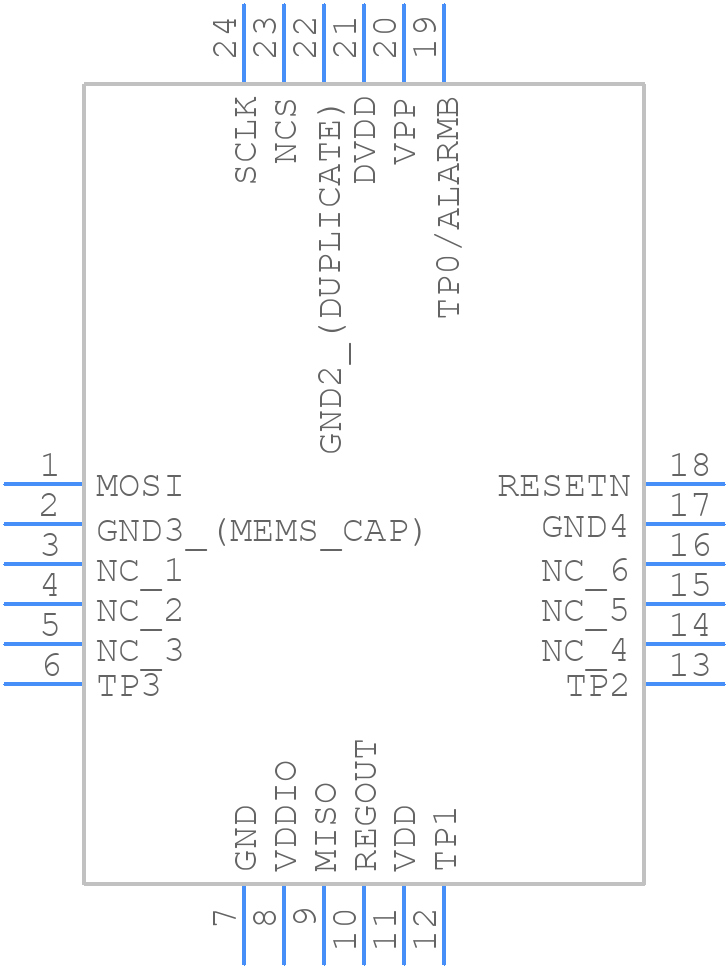

Use the download button to access the EWTS5G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EWTS5,
or try a keyword search, such as Other Sensors/Transducers
