The recommended land pattern for EWTS5GND21 can be found in the Panasonic Electronic Components' recommended land pattern document, which is usually available on their website or through their customer support. The document provides detailed information on the recommended pad size, shape, and spacing for optimal performance and reliability.
Thermal management is crucial for the EWTS5GND21 component. It's recommended to use a thermal pad or a heat sink to dissipate heat generated by the component. The thermal pad or heat sink should be connected to a ground plane or a heat sink on the PCB to ensure efficient heat dissipation. Additionally, ensure that the component is placed in a well-ventilated area to prevent overheating.
The maximum operating temperature range for EWTS5GND21 is typically specified in the datasheet as -40°C to +125°C. However, it's essential to note that the component's performance and reliability may degrade at extreme temperatures. It's recommended to operate the component within the recommended temperature range for optimal performance and longevity.
The EWTS5GND21 component is designed to withstand certain levels of vibration, but it's essential to ensure that the component is properly mounted and secured to the PCB to prevent damage or dislodging. It's recommended to follow the manufacturer's guidelines for vibration testing and to consult with a mechanical engineer to ensure that the component can withstand the expected vibration levels in the target application.
To troubleshoot issues with EWTS5GND21, start by consulting the datasheet and application notes to ensure that the component is used within its recommended operating conditions. Check the component's pinout, voltage supply, and signal integrity to identify any potential issues. Use oscilloscopes, logic analyzers, or other diagnostic tools to analyze the component's behavior and identify the root cause of the issue. If the issue persists, contact Panasonic Electronic Components' customer support for further assistance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EWTS5GND21 Overview

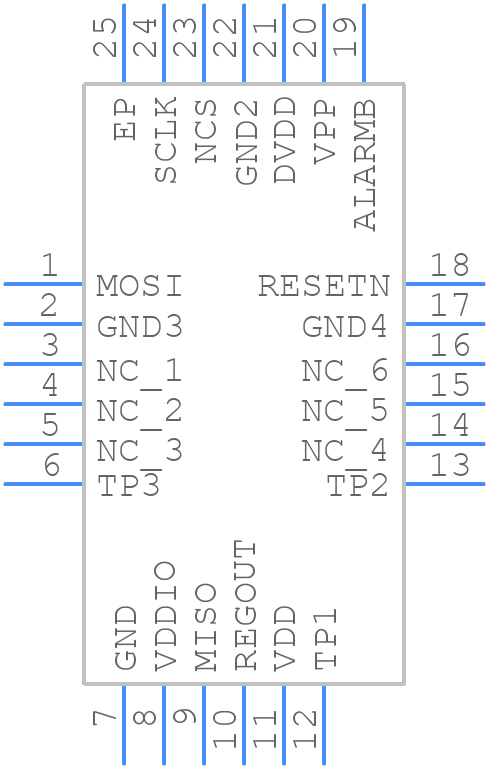

Use the download button to access the EWTS5GND21 schematic symbol, PCB footprint, and 3D model.
