Panasonic recommends a 4-layer PCB with a solid ground plane and a separate power plane for the VCC and VEE pins. Additionally, keep the input and output traces as short as possible and avoid routing them near noise sources.
To ensure reliability, follow Panasonic's recommended operating temperature range (–40°C to +125°C) and consider using a heat sink or thermal pad to dissipate heat. Also, ensure proper PCB design, component selection, and soldering to minimize thermal stress.
The maximum allowable voltage for the VCC pin is 6.5V. To protect against overvoltage, use a voltage regulator or a transient voltage suppressor (TVS) diode to limit the voltage to within the recommended range.
To minimize EMI, use a shielded enclosure, keep the PCB layout compact, and use a common-mode choke or ferrite bead on the input and output lines. Additionally, ensure proper grounding and decoupling of the device.
Store the EXC24CP221U in a dry, cool place (–40°C to +30°C) with relative humidity below 60%. Avoid exposing the device to direct sunlight, moisture, or extreme temperatures.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EXC24CP221U Overview

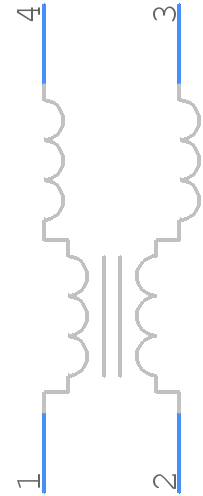

Use the download button to access the EXC24CP221U schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EXC24,
or try a keyword search, such as Data Line Filters
