EXG.0B.303.HLN - LEMO

Description: Circular Connector Receptacle 3 LV-Pin with Print termination and mechanical alignment key

Download EXG.0B.303.HLN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

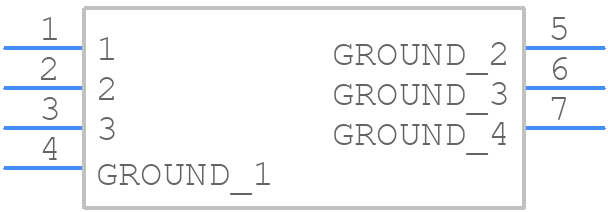

EXG.0B.303.HLN - LEMO - PCB symbol
click to zoom
PCB Footprints
EXG.0B.303.HLN - LEMO PCB footprint - Other - Other - EXG.0B.303.HLN-3
click to zoom
3D Models
EXG.0B.303.HLN - LEMO - 3D model - Other - EXG.0B.303.HLN-3
click to zoom

EXG.0B.303.HLN Details

  • Manufacturer Part Number:

    EXG.0B.303.HLN

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Switzerland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    LEMO connectors

  • YTEOL:

    8

  • Additional Feature:

    POLARIZED; SHIELDED

  • Backshell Type:

    SOLID

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    SNAP

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Environmental Characteristics:

    CORROSION; MOISTURE RESISTANT

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYPHENYLENE SULFIDE

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    3

EXG.0B.303.HLN Frequently Asked Questions (FAQs)

  • The recommended torque for tightening the EXG.0B.303.HLN connector is 0.4 Nm to 0.6 Nm (0.3 in-lbs to 0.5 in-lbs).
  • Yes, the EXG.0B.303.HLN connector is designed to withstand high vibrations and is suitable for applications where vibration is a concern.
  • Yes, the EXG.0B.303.HLN connector is designed to operate in harsh environments, including extreme temperatures, humidity, and exposure to chemicals.
  • The EXG.0B.303.HLN connector is designed to operate up to 3 GHz, making it suitable for high-frequency applications.
  • Yes, the EXG.0B.303.HLN connector is compatible with other LEMO connectors, including the EGG, FGG, and KGG series.
