EXG.0B.306.HLN footprint, schematic symbol and 3D model by LEMO

Symbol

click to zoom

PCB Footprints

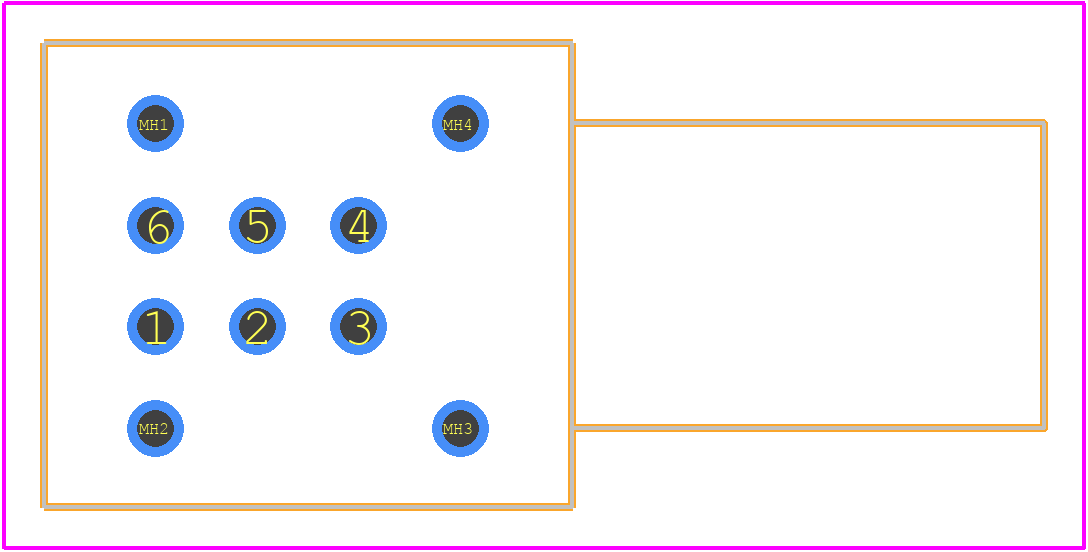

EXG.0B.306.HLN - LEMO PCB footprint - Other - Other - EXG.0B.306.HLN

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for EXG.0B.306.HLN
Part Number EXG.0B.306.HLN
Manufacturer LEMO
Pin Count 10
Part Category Connector
Package Category Other
Footprint Name Other - EXG.0B.306.HLN
Released Date Mar 31, 2020
Last Modified Date Oct 27, 2023 9:24 PM UTC
Pinout / Pin List Click Here (Member Only)

EXG.0B.306.HLN Details

Manufacturer Part Number:
EXG.0B.306.HLN
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Switzerland
ECCN Code:
EAR99
HTS Code:
8536.69.40.20
Manufacturer:
LEMO connectors
YTEOL:
8
Additional Feature:
SHIELDED
Backshell Type:
SOLID
Body/Shell Style:
RECEPTACLE
Connector Type:
CIRCULAR CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Gender:
FEMALE
Contact Material:
NOT SPECIFIED
Coupling Type:
THREADED
DIN Conformance:
NO
Empty Shell:
NO
Environmental Characteristics:
CORROSION/MOISTURE RESISTANT
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
POLYPHENYLENE SULFIDE
MIL Conformance:
NO
Mixed Contacts:
NO
Mounting Type:
BOARD AND PANEL
Option:
GENERAL PURPOSE
Termination Type:
SOLDER
Total Number of Contacts:
6

EXG.0B.306.HLN Frequently Asked Questions (FAQs)

The maximum operating temperature of the EXG.0B.306.HLN connector is 175°C (347°F), according to LEMO's specifications.
Yes, the EXG.0B.306.HLN connector is designed to withstand high vibrations and is suitable for applications where shock and vibration are a concern.
Yes, the EXG.0B.306.HLN connector is designed to operate in harsh environments, including exposure to moisture, dust, and chemicals, making it suitable for industrial, aerospace, and defense applications.
The EXG.0B.306.HLN connector has an IP67 rating, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes.
Yes, the EXG.0B.306.HLN connector is designed for high-speed data transmission and can support data rates up to 10 Gbps.
