EXG.0B.307.HLN footprint, schematic symbol and 3D model by LEMO

Symbol

click to zoom

PCB Footprints

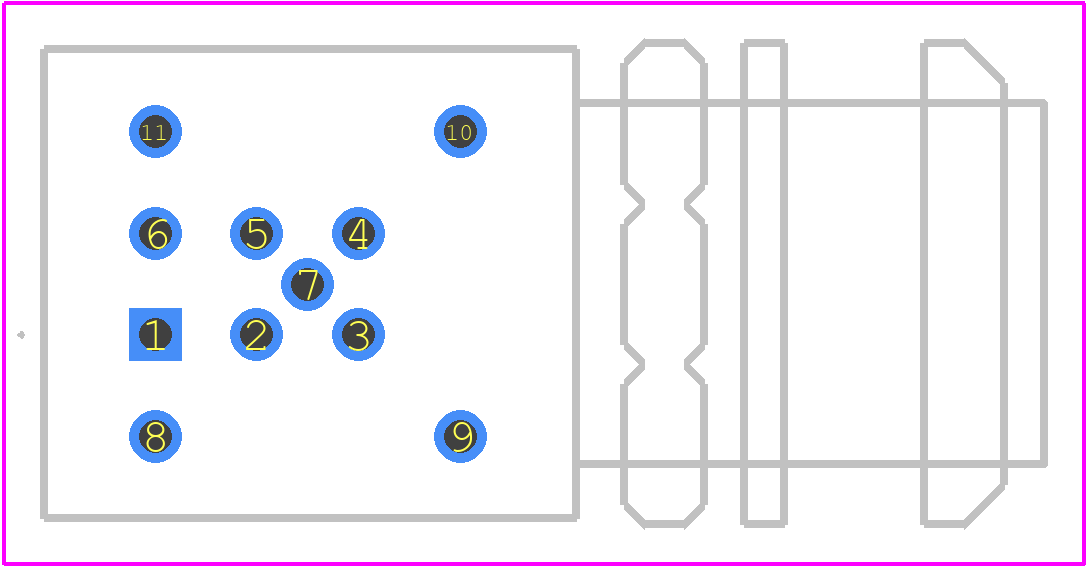

EXG.0B.307.HLN - LEMO PCB footprint - Other - Other - EXG.0B.307.HLN-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for EXG.0B.307.HLN
Part Number EXG.0B.307.HLN
Manufacturer LEMO
Pin Count 11
Part Category Connector
Package Category Other
Footprint Name Other - EXG.0B.307.HLN-2
Released Date Dec 15, 2025
Last Modified Date Dec 15, 2025 8:54 AM UTC
Pinout / Pin List Click Here (Member Only)

EXG.0B.307.HLN Details

Manufacturer Part Number:
EXG.0B.307.HLN
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Switzerland
ECCN Code:
EAR99
HTS Code:
8536.69.40.20
Manufacturer:
LEMO connectors
YTEOL:
8
Backshell Type:
SOLID
Body/Shell Style:
RECEPTACLE
Connector Type:
CIRCULAR CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Gender:
FEMALE
Contact Material:
NOT SPECIFIED
Coupling Type:
THREADED
DIN Conformance:
NO
Empty Shell:
NO
Environmental Characteristics:
CORROSION/MOISTURE RESISTANT
Filter Feature:
NO
IEC Conformance:
NO
Insulator Material:
POLYPHENYLENE SULFIDE
MIL Conformance:
NO
Mixed Contacts:
NO
Mounting Type:
BOARD AND PANEL
Option:
GENERAL PURPOSE
Termination Type:
SCREW/SOLDER
Total Number of Contacts:
7

EXG.0B.307.HLN Frequently Asked Questions (FAQs)

The recommended torque for the EXG.0B.307.HLN connector is 0.4 Nm to 0.6 Nm (3.5 in-lbs to 5.3 in-lbs).
Yes, the EXG.0B.307.HLN connector is designed to withstand high-vibration environments and is suitable for applications where vibration is a concern.
Yes, the EXG.0B.307.HLN connector is designed to operate in harsh environments, including extreme temperatures, humidity, and exposure to chemicals.
The EXG.0B.307.HLN connector is designed to operate up to 3 GHz, making it suitable for high-frequency applications.
Yes, the EXG.0B.307.HLN connector is compatible with other LEMO connectors, including the EXG.0B.307.HLN series, and can be mated with other LEMO connectors with the same configuration.
