EXG.1B.304.HLN - LEMO

Description: 4 Position Circular Connector Receptacle, Female Sockets Solder

Download EXG.1B.304.HLN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EXG.1B.304.HLN - LEMO - PCB symbol
click to zoom
PCB Footprints

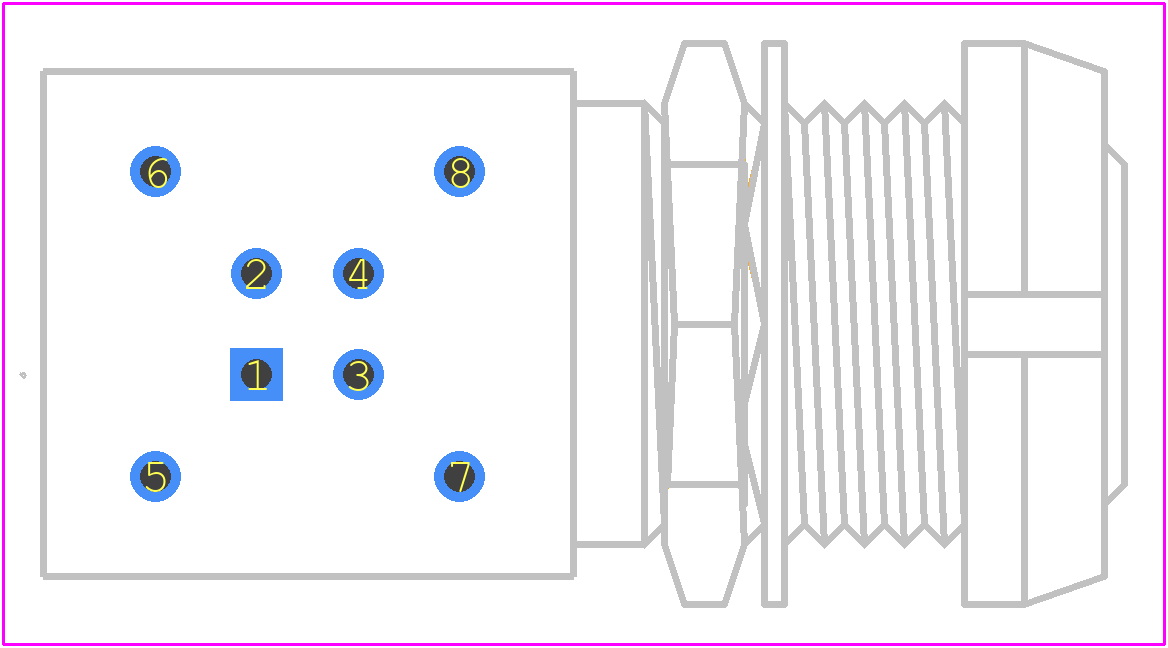

EXG.1B.304.HLN - LEMO PCB footprint - Other - Other - EXG.1B.304.HLN-4
click to zoom
3D Models
EXG.1B.304.HLN - LEMO - 3D model - Other - EXG.1B.304.HLN-4
click to zoom

EXG.1B.304.HLN Details

  • Manufacturer Part Number:

    EXG.1B.304.HLN

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Switzerland

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.20

  • Manufacturer:

    LEMO connectors

  • YTEOL:

    8

  • Additional Feature:

    POLARIZED, SHIELDED

  • Backshell Type:

    SOLID

  • Body/Shell Style:

    RECEPTACLE

  • Connector Type:

    CIRCULAR CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Coupling Type:

    SNAP

  • DIN Conformance:

    NO

  • Empty Shell:

    NO

  • Environmental Characteristics:

    CORROSION/MOISTURE RESISTANT

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYPHENYLENE SULFIDE

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Type:

    BOARD AND PANEL

  • Option:

    GENERAL PURPOSE

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    4

EXG.1B.304.HLN Frequently Asked Questions (FAQs)

  • The recommended torque for the EXG.1B.304.HLN connector is 0.4 Nm to 0.6 Nm (3.5 in-lbs to 5.3 in-lbs).
  • Yes, the EXG.1B.304.HLN connector is designed to withstand high-vibration environments and is suitable for applications where vibration is a concern.
  • Yes, the EXG.1B.304.HLN connector is designed to operate in harsh environments, including extreme temperatures, humidity, and exposure to chemicals.
  • The EXG.1B.304.HLN connector is designed to operate up to 3 GHz, making it suitable for high-frequency applications.
  • Yes, the EXG.1B.304.HLN connector is compatible with other LEMO connectors, including the 1B series, and can be mated with other LEMO connectors of the same series.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EXG.1B.304.HLN Overview

Use the download button to access the EXG.1B.304.HLN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EXG.1, or try a keyword search, such as Other Circular Connectors

About LEMO

LEMO is a global manufacturer of fiber optic connectors used in medical, industrial, telecommunications, defense, test and measurement, and audio/visual applications. LEMO is known for their push-pull self latching connectors. LEMO is headquartered in Switzerland.
