EXG.1B.308.HLNS footprint, schematic symbol and 3D model by LEMO

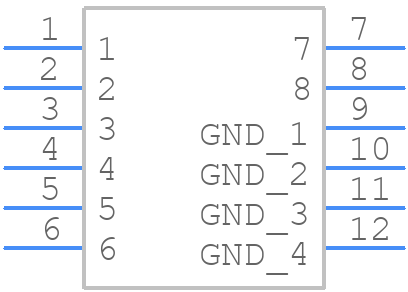

Symbol

click to zoom

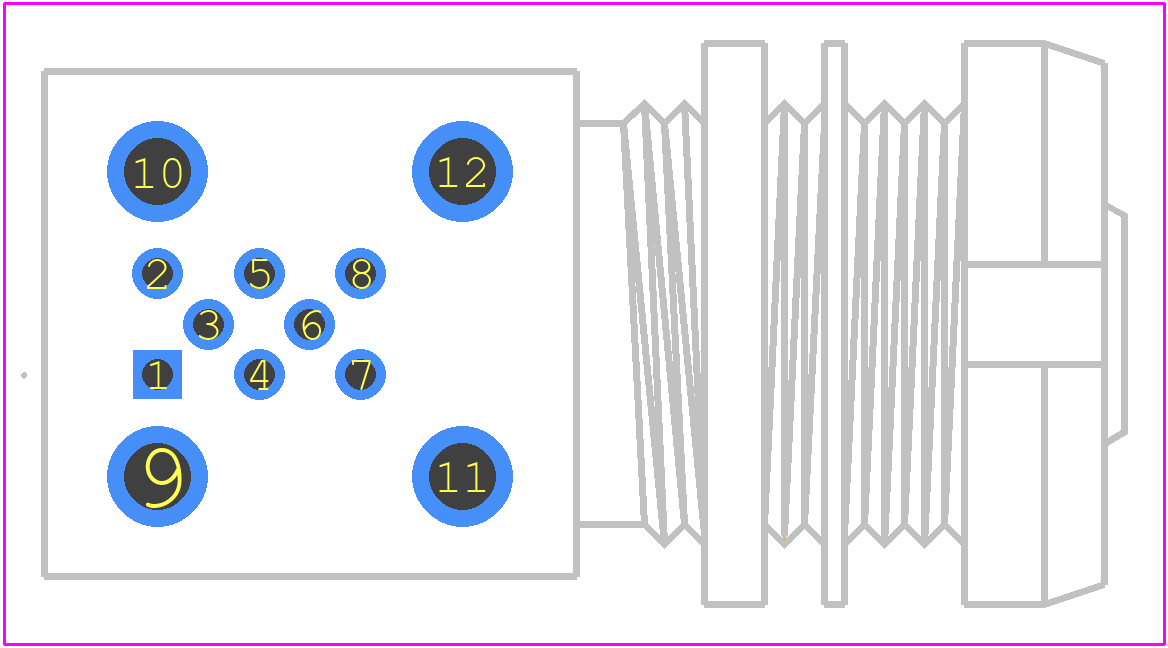

PCB Footprints

EXG.1B.308.HLNS - LEMO PCB footprint - Other - Other - EXG.1B.308.HLNS-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for EXG.1B.308.HLNS
Part Number EXG.1B.308.HLNS
Manufacturer LEMO
Pin Count 12
Part Category Connector
Package Category Other
Footprint Name Other - EXG.1B.308.HLNS-2
Released Date May 7, 2024
Last Modified Date Jun 25, 2024 8:09 AM UTC
Pinout / Pin List Click Here (Member Only)

EXG.1B.308.HLNS Details

Manufacturer Part Number:
EXG.1B.308.HLNS
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Switzerland
ECCN Code:
EAR99
HTS Code:
8536.69.40.20
Manufacturer:
LEMO connectors
YTEOL:
8
Additional Feature:
IP50, SHIELDED
Backshell Type:
SOLID
Body/Shell Style:
RECEPTACLE
Connector Type:
CIRCULAR CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Gender:
FEMALE
Contact Material:
NOT SPECIFIED
Coupling Type:
SNAP
Empty Shell:
NO
Environmental Characteristics:
CORROSION/MOISTURE RESISTANT
Filter Feature:
NO
Insulator Material:
POLYETHERETHERKETONE
Mixed Contacts:
NO
Mounting Type:
BOARD AND PANEL
Operating Temperature-Max:
250 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
Reference Standard:
UL
Termination Type:
SOLDER
Total Number of Contacts:
8

EXG.1B.308.HLNS Frequently Asked Questions (FAQs)

The recommended torque for the EXG.1B.308.HLNS connector is 0.8 Nm (7.06 lbf.in) for the nut and 0.4 Nm (3.53 lbf.in) for the screw.
Yes, the EXG.1B.308.HLNS connector is designed to withstand high-vibration environments, making it suitable for applications such as aerospace, defense, and industrial equipment.
Yes, the EXG.1B.308.HLNS connector is designed to operate in harsh environments, including extreme temperatures (-55°C to 150°C), humidity, and exposure to chemicals and fuels.
The EXG.1B.308.HLNS connector has an IP67 rating, which means it is protected against dust and can withstand immersion in water up to 1 meter for 30 minutes.
Yes, the EXG.1B.308.HLNS connector is designed for high-speed data transmission and can support frequencies up to 10 GHz.

Trust Checks

Community Provided

System Verified

Community Approved

EXG.1B.308.HLNS Overview

Use the download button to access the EXG.1B.308.HLNS schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like EXG.1, or try a keyword search, such as Other Circular Connectors

About LEMO

LEMO is a global manufacturer of fiber optic connectors used in medical, industrial, telecommunications, defense, test and measurement, and audio/visual applications. LEMO is known for their push-pull self latching connectors. LEMO is headquartered in Switzerland.
