Part Image

EZAEGCA50AV - Panasonic

Description: Series/Type: ESD Suppressor Array, Chip Size [LxW(EIA)] (mm): 2.0×1.25 (EIA:0805), Capacitance value (pF): 0.25 +0.05/-0.10, Rated voltage (V): 15, Peak voltage [max.] (V): 500, Clamping voltage [max.] (V): 100, ESD withstanding [IEC61000-4-2 contact Discharge] (kV): 8, Number of circuit: 4

Download EZAEGCA50AV Model

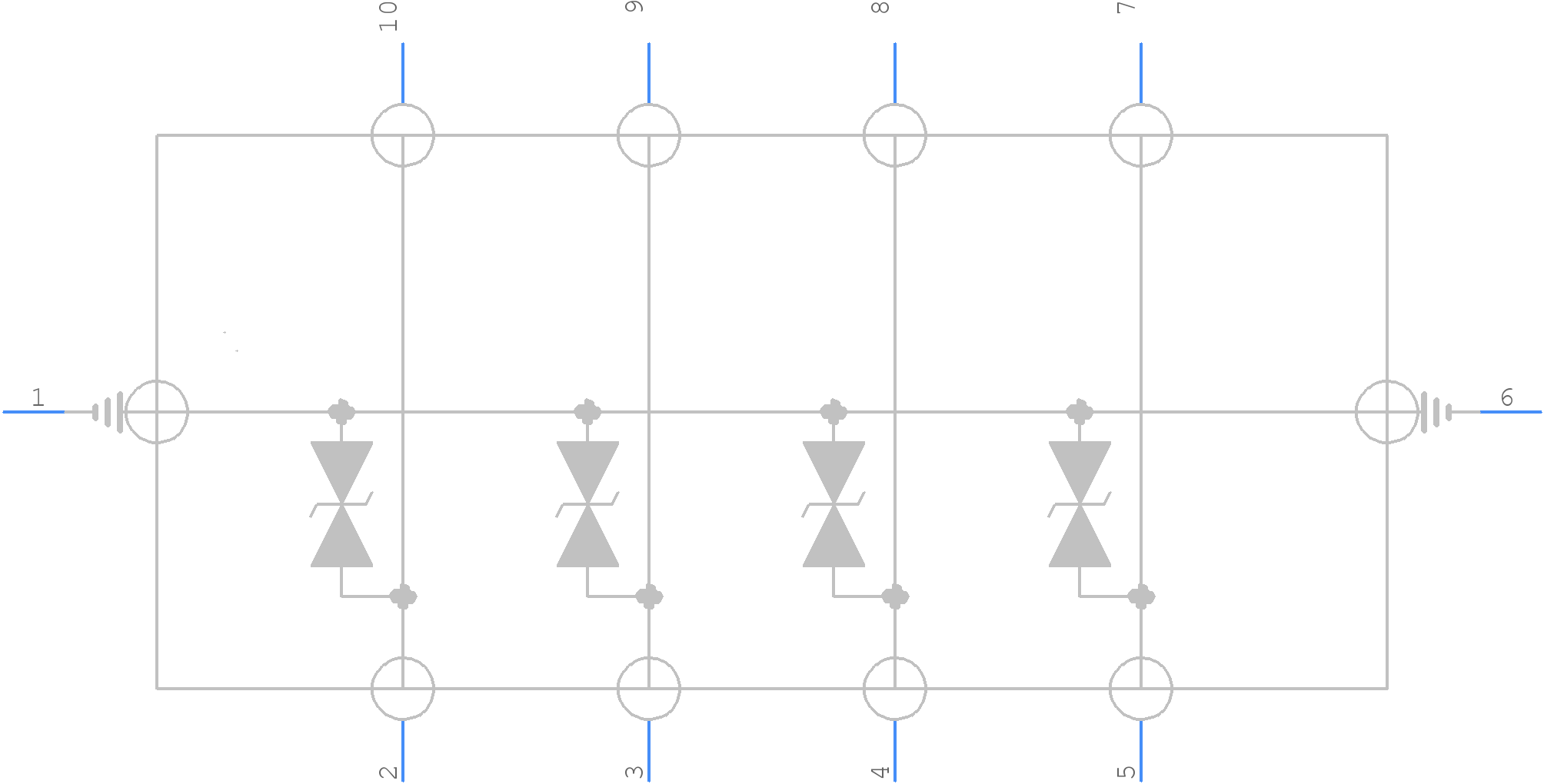

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
EZAEGCA50AV - Panasonic PCB footprint - Other - Other - EZA-EGCA50AV-2
click to zoom
3D Models
EZAEGCA50AV - Panasonic  - 3D model - Other - EZA-EGCA50AV-2
click to zoom

EZAEGCA50AV Details

  • Manufacturer Part Number:

    EZAEGCA50AV

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD, 10 PIN

  • Pin Count:

    10

  • Country Of Origin:

    Japan

  • ECCN Code:

    EAR99

  • HTS Code:

    8541.10.00.50

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    7

  • Clamping Voltage-Max:

    100 V

  • Configuration:

    SINGLE

  • Diode Element Material:

    SILICON

  • Diode Type:

    TRANS VOLTAGE SUPPRESSOR DIODE

  • JESD-30 Code:

    R-PDSO-F10

  • JESD-609 Code:

    e3

  • Number of Elements:

    1

  • Number of Terminals:

    10

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Polarity:

    UNIDIRECTIONAL

  • Qualification Status:

    Not Qualified

  • Rep Pk Reverse Voltage-Max:

    15 V

  • Surface Mount:

    YES

  • Technology:

    AVALANCHE

  • Terminal Finish:

    Tin (Sn)

  • Terminal Form:

    FLAT

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

EZAEGCA50AV Frequently Asked Questions (FAQs)

  • Panasonic provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure optimal performance, minimize thermal resistance, and prevent electrical noise.
  • Proper thermal management is crucial for the EZAEGCA50AV. Ensure good airflow, use thermal vias, and consider heat sinks or thermal interface materials to keep the junction temperature below the recommended maximum. Consult Panasonic's thermal design guides for more information.
  • Panasonic provides recommended soldering conditions and profiles in their datasheet and application notes. It's essential to follow these guidelines to prevent damage, ensure reliable connections, and meet the component's solderability requirements.
  • To troubleshoot issues, start by consulting the datasheet and application notes. Check for proper PCB layout, thermal management, and soldering. Use oscilloscopes and other diagnostic tools to identify electrical issues. If necessary, contact Panasonic's technical support for further assistance.
  • Yes, the EZAEGCA50AV is susceptible to electromagnetic interference (EMI). Follow proper PCB layout and shielding techniques, use EMI filters, and ensure good grounding to minimize EMI effects. Consult Panasonic's EMI/EMC guidelines and relevant industry standards for more information.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EZAEGCA50AV Overview

Use the download button to access the EZAEGCA50AV schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EZAEG, or try a keyword search, such as Transient Suppressors
