EZPE1B406MTA Frequently Asked Questions (FAQs)

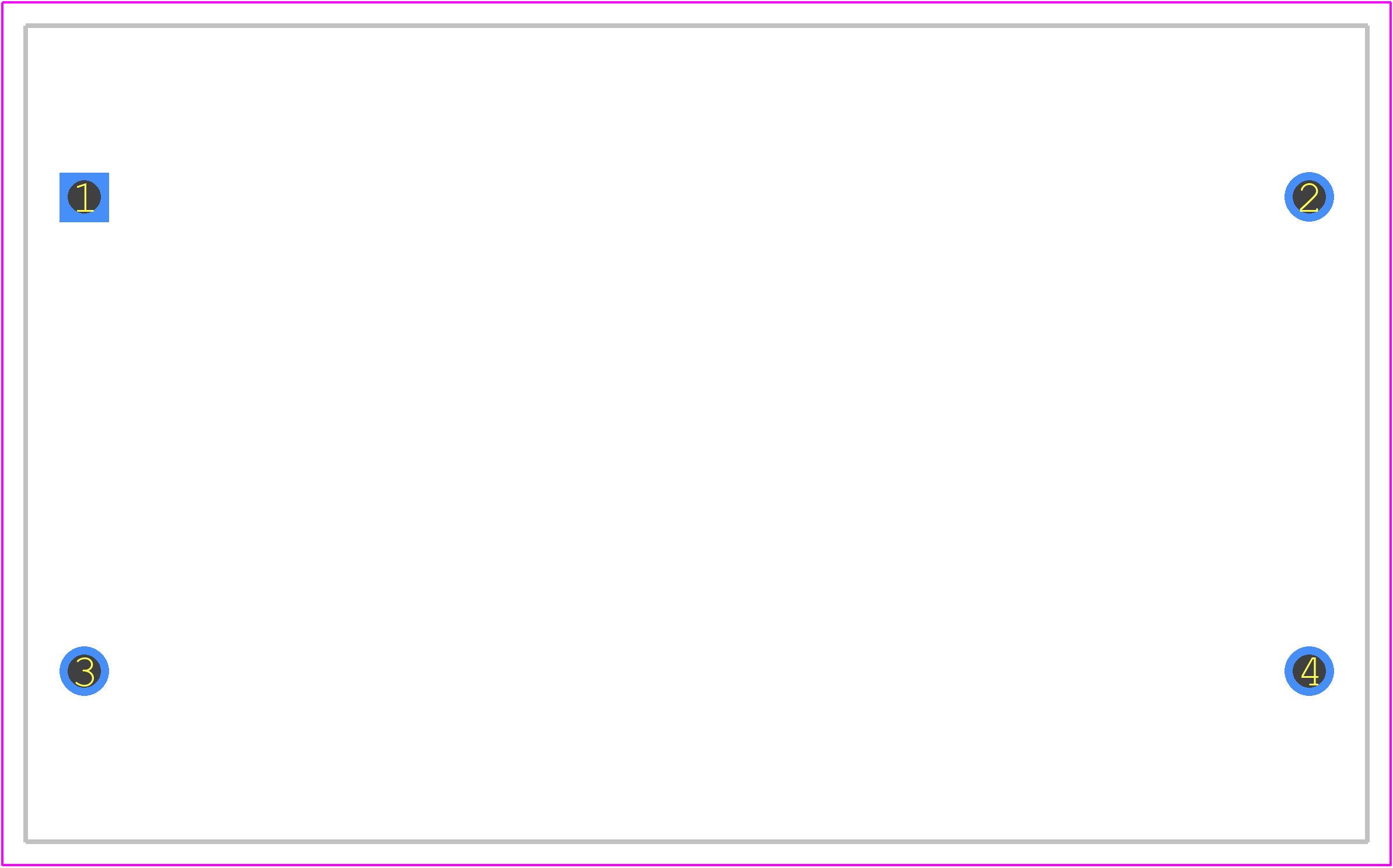

• What is the recommended land pattern for EZPE1B406MTA?
  The recommended land pattern for EZPE1B406MTA is a rectangular pad with a size of 2.5mm x 1.25mm, with a 0.5mm solder mask opening. It's essential to follow the recommended land pattern to ensure reliable soldering and prevent thermal issues.
• How do I handle the thermal management of EZPE1B406MTA?
  To handle thermal management, ensure that the component is mounted on a heat-conductive surface, such as a copper plane or a thermal pad. Additionally, consider using thermal interface materials (TIMs) to improve heat transfer. It's also crucial to follow the recommended operating temperature range and power rating to prevent overheating.
• What is the recommended soldering profile for EZPE1B406MTA?
  The recommended soldering profile for EZPE1B406MTA is a peak temperature of 260°C, with a dwell time of 10-30 seconds. It's essential to follow a controlled soldering process to prevent damage to the component and ensure reliable connections.
• Can I use EZPE1B406MTA in a high-vibration environment?
  While EZPE1B406MTA is designed to be robust, it's still important to consider the vibration environment in which it will operate. Panasonic recommends following the guidelines for vibration testing and ensuring that the component is properly secured to the PCB to prevent mechanical stress.
• How do I ensure the reliability of EZPE1B406MTA in a humid environment?
  To ensure reliability in a humid environment, follow the recommended storage and handling procedures to prevent moisture absorption. Additionally, consider applying a conformal coating to the PCB to protect the component from moisture and contaminants.
