The recommended land pattern for EZPE50107MTA is a rectangular pad with a size of 2.5mm x 1.5mm, with a solder mask opening of 2.2mm x 1.2mm. It's essential to follow the recommended land pattern to ensure reliable soldering and prevent thermal issues.
To handle thermal management, ensure good thermal conductivity between the device and the PCB by using a thermal via or a thermal pad. Also, consider using a heat sink or a thermal interface material (TIM) to dissipate heat efficiently. The maximum operating temperature is 125°C, so ensure the device is operated within this range.
The recommended soldering temperature profile for EZPE50107MTA is a peak temperature of 260°C, with a dwell time of 10-30 seconds above 220°C. It's essential to follow a controlled soldering process to prevent damage to the device.
While EZPE50107MTA is a robust device, it's not specifically designed for high-vibration environments. If you need to use it in such an environment, ensure the device is properly secured to the PCB, and consider using additional mechanical support or vibration-dampening materials to minimize the risk of damage or failure.
To troubleshoot issues with EZPE50107MTA, start by checking the power supply voltage, ensuring it's within the recommended range. Then, verify the input and output signals, and check for any signs of overheating or physical damage. If the issue persists, consult the datasheet and application notes, or contact Panasonic's technical support for further assistance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EZPE50107MTA Overview

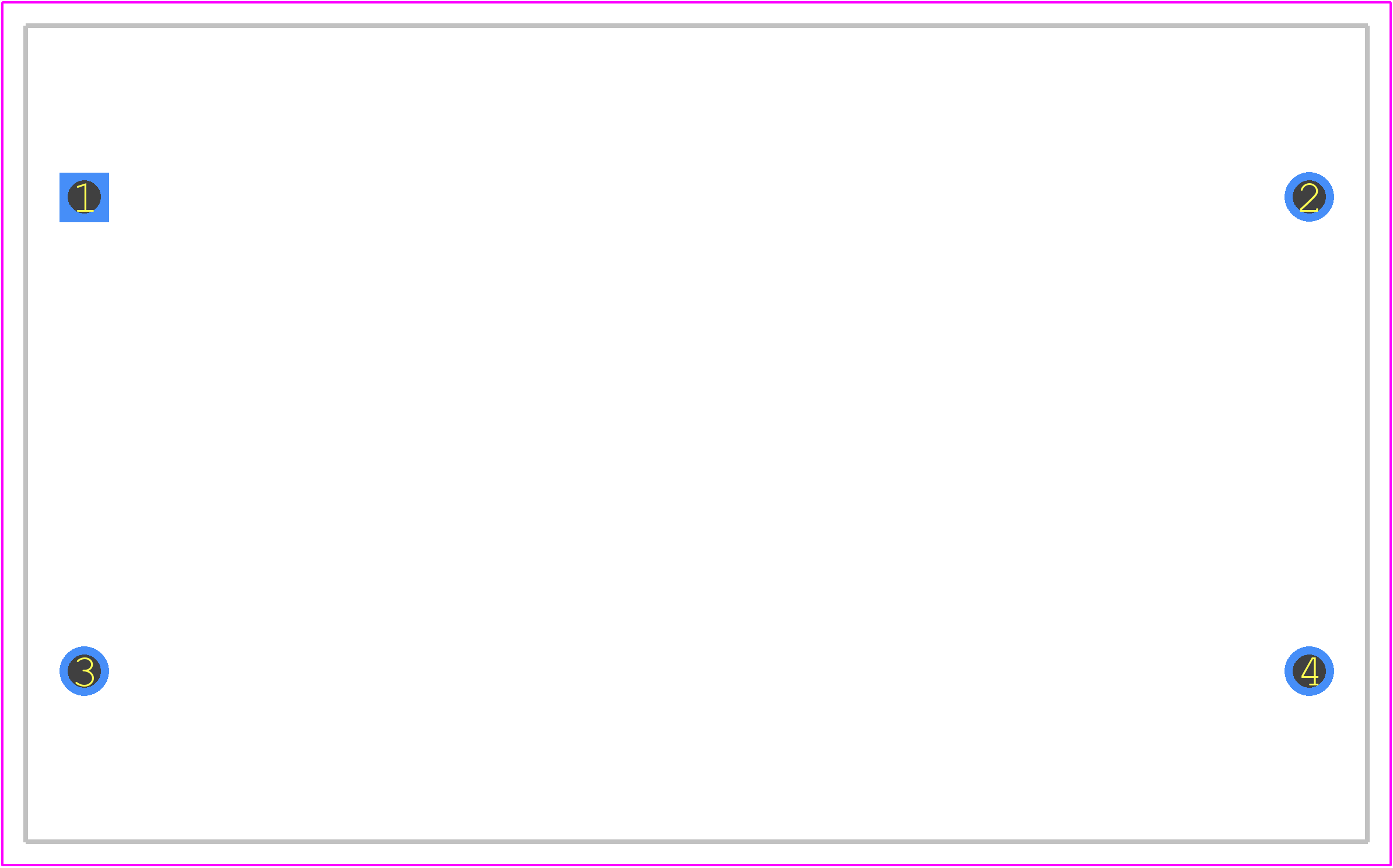

Use the download button to access the EZPE50107MTA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EZPE5,
or try a keyword search, such as Ceramic Capacitors
