The recommended land pattern for EZPE50306MTA is a rectangular pad with a size of 2.5mm x 1.5mm, with a solder mask opening of 2.2mm x 1.2mm. It's essential to follow the recommended land pattern to ensure reliable soldering and prevent thermal issues.
To handle thermal management, ensure that the component is mounted on a heat-conductive substrate, and consider using thermal vias or thermal pads to dissipate heat. Additionally, keep the surrounding components at a safe distance to prevent thermal interference.
The maximum operating temperature range for EZPE50306MTA is -40°C to +125°C. However, it's essential to note that the component's performance and reliability may degrade at extreme temperatures, so it's recommended to operate within the specified temperature range for optimal performance.
Yes, EZPE50306MTA is designed to withstand vibrations up to 10G (10Hz to 2kHz). However, it's crucial to ensure that the component is properly mounted and secured to prevent mechanical stress and damage.
The recommended storage condition for EZPE50306MTA is in a dry, cool place with a temperature range of 5°C to 30°C and humidity below 60%. Avoid exposing the component to direct sunlight, moisture, or extreme temperatures during storage.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EZPE50306MTA Overview

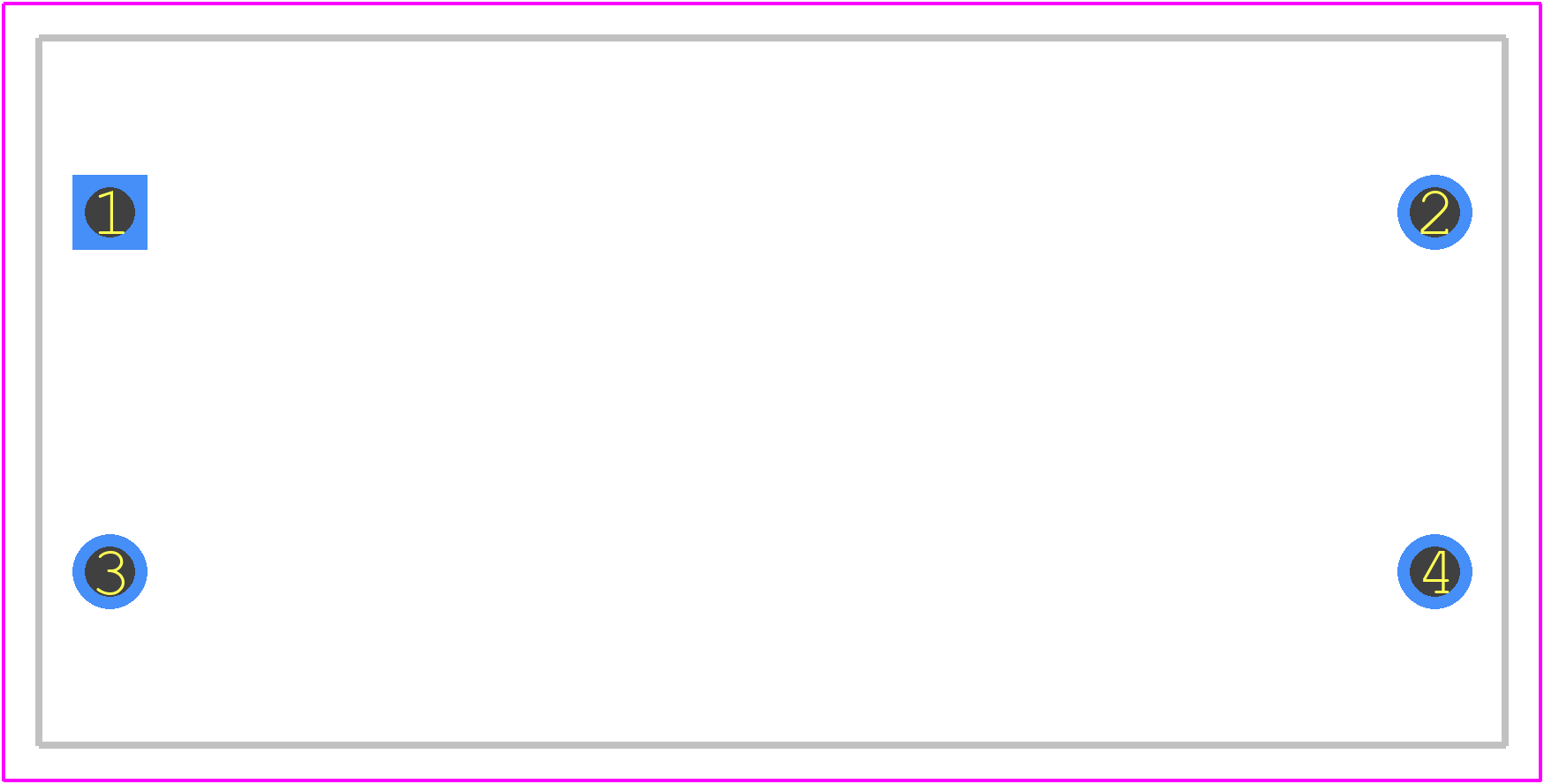

Use the download button to access the EZPE50306MTA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EZPE5,
or try a keyword search, such as Film Capacitors
