Panasonic provides a recommended PCB layout and land pattern in their application notes and design guides. It's essential to follow these guidelines to ensure optimal performance, thermal management, and reliability.
Proper thermal management is crucial for the EZPE80606MTA. Ensure good heat dissipation by using a heat sink, thermal interface material, and a well-designed PCB with thermal vias. Follow Panasonic's thermal design guidelines and consider using a thermal simulation tool to optimize your design.
Handle the EZPE80606MTA with care to prevent damage. Avoid touching the component's pins, use anti-static wrist straps or mats, and store the components in their original packaging or anti-static bags. Follow Panasonic's recommended handling and storage guidelines to ensure the component's reliability and performance.
While the EZPE80606MTA is a robust component, it's essential to evaluate its suitability for high-vibration or high-shock environments. Consult Panasonic's reliability and environmental testing data, and consider additional mechanical support or component fixation to ensure the component's reliability and performance.
To troubleshoot issues with the EZPE80606MTA, follow a systematic approach: consult the datasheet, application notes, and design guides; check the PCB layout, component placement, and soldering quality; and use diagnostic tools such as oscilloscopes or logic analyzers to identify the root cause of the issue. If necessary, contact Panasonic's technical support for further assistance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EZPE80606MTA Overview

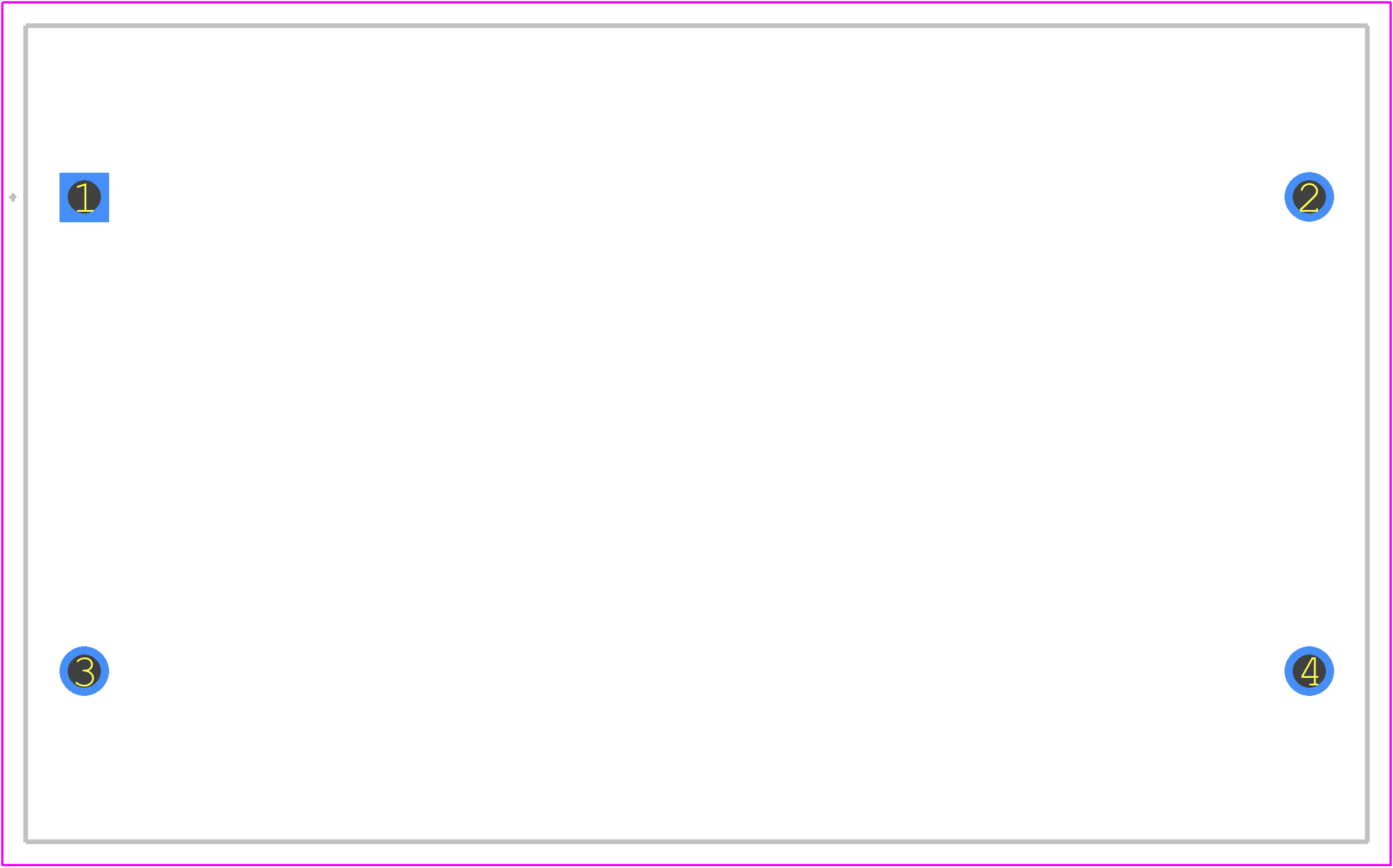

Use the download button to access the EZPE80606MTA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EZPE8,
or try a keyword search, such as Ceramic Capacitors
