EZPQ25226LTA - Panasonic

Description: Panasonic 22μF Polypropylene Capacitor PP 250 V ac ±10% Tolerance Through Hole EZPQ Series

Download EZPQ25226LTA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

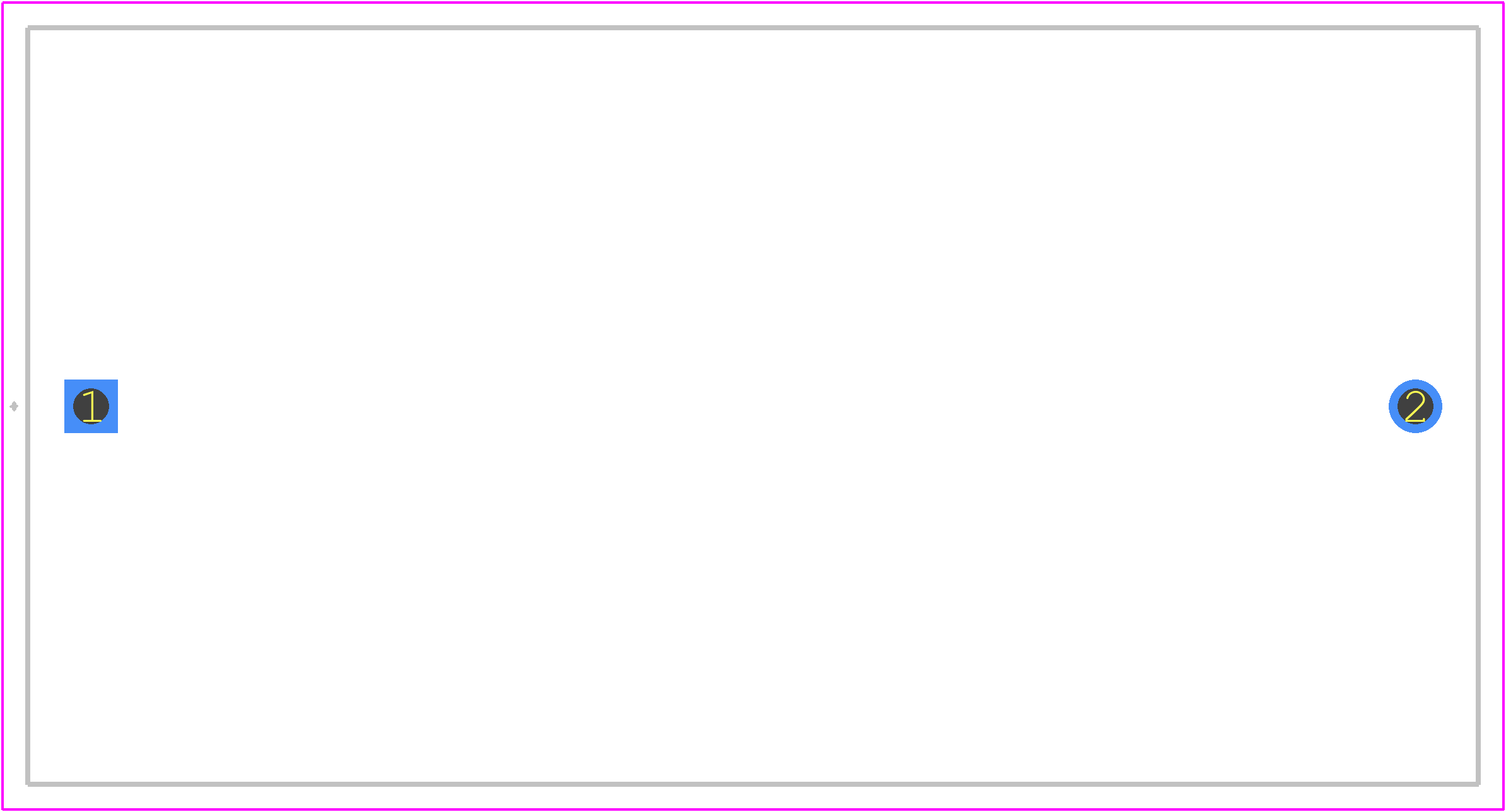

EZPQ25226LTA - Panasonic PCB footprint - Other - Other -  EZPQ25226LTA
click to zoom
3D Models
EZPQ25226LTA - Panasonic  - 3D model - Other -  EZPQ25226LTA
click to zoom

EZPQ25226LTA Details

  • Manufacturer Part Number:

    EZPQ25226LTA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ,

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.70

  • Factory Lead Time:

    28 Weeks

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    7.48

  • Capacitance:

    22 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYPROPYLENE

  • Height:

    45 mm

  • Length:

    57.5 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Style:

    Radial

  • Positive Tolerance:

    10%

  • Rated (AC) Voltage (URac):

    250 V

  • Surface Mount:

    NO

  • Terminal Pitch:

    52.5 mm

  • Terminal Shape:

    WIRE

  • Width:

    30 mm

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
