EZPQ38226MTA - Panasonic

Description: 22 µF Film Capacitor 380V - Polypropylene (PP), Metallized Radial - 4 Leads

Download EZPQ38226MTA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

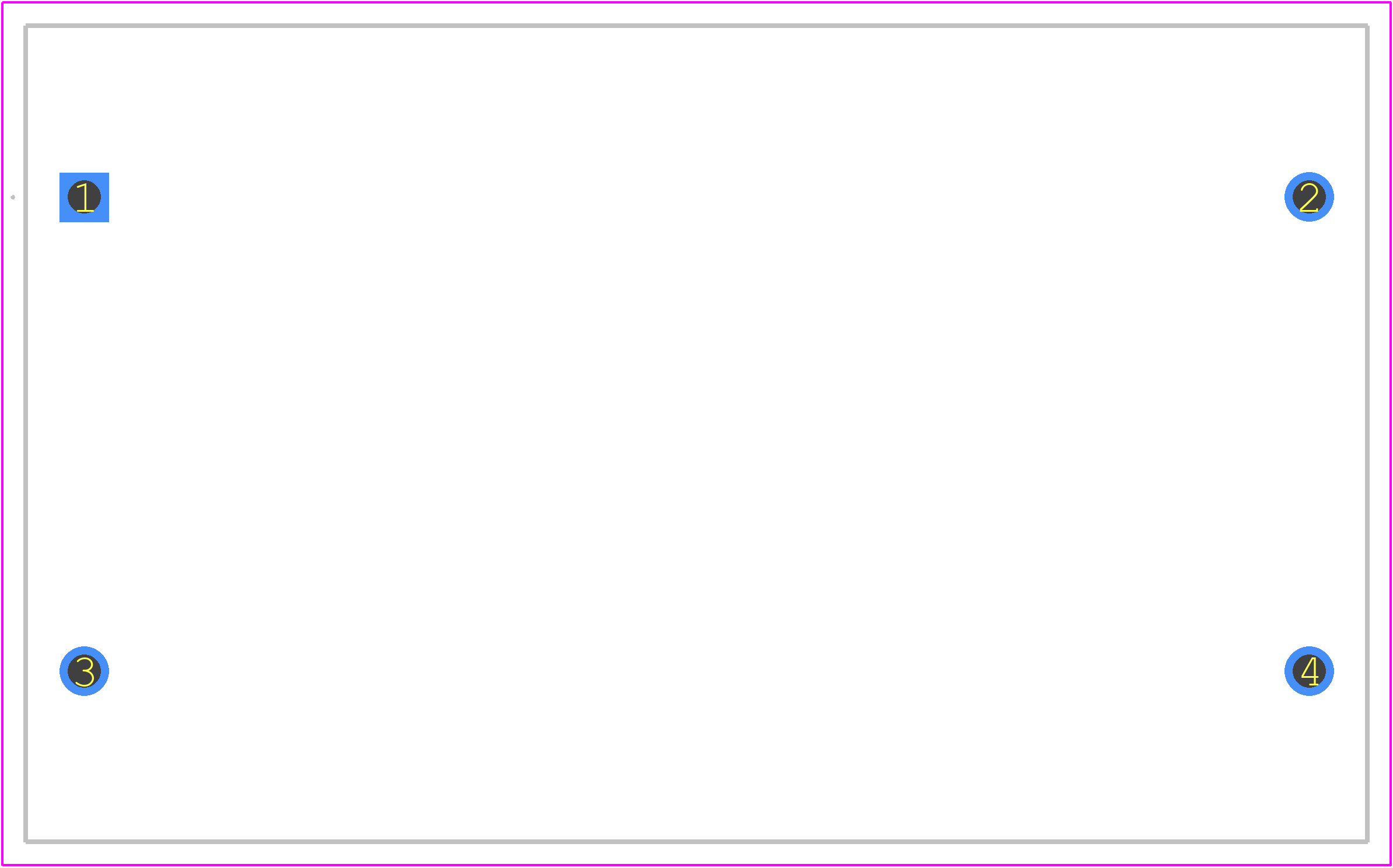

EZPQ38226MTA - Panasonic PCB footprint - Other - Other - 57.5 x 35 x 56 mmm
click to zoom
3D Models
EZPQ38226MTA - Panasonic  - 3D model - Other - 57.5 x 35 x 56 mmm
click to zoom

EZPQ38226MTA Details

  • Manufacturer Part Number:

    EZPQ38226MTA

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.25.00.70

  • Manufacturer:

    Panasonic Electronic Components

  • YTEOL:

    7.47

  • Additional Feature:

    ESR IS MEASURED AT 10KHZ, RIPPLE CURRENT IS MEASURED AT 10KHZ AND 85CEL

  • Capacitance:

    22 µF

  • Capacitor Type:

    FILM CAPACITOR

  • Dielectric Material:

    POLYPROPYLENE

  • ESR:

    7.5 mΩ

  • Height:

    56 mm

  • Length:

    57.5 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    5%

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Style:

    Radial

  • Positive Tolerance:

    5%

  • Rated (AC) Voltage (URac):

    380 V

  • Ripple Current:

    11900 mA

  • Surface Mount:

    NO

  • Terminal Shape:

    WIRE

  • Width:

    35 mm

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EZPQ38226MTA Overview

Use the download button to access the EZPQ38226MTA schematic symbol, PCB footprint, and 3D model.
