The recommended land pattern for EZPV1B406MTC is a rectangular pad with a size of 2.5mm x 1.5mm, with a solder mask opening of 2.2mm x 1.2mm, and a non-solder mask defined (NSMD) pad.
Yes, EZPV1B406MTC is rated for operation up to 125°C, making it suitable for high-temperature applications. However, it's essential to ensure that the component is properly derated and that the operating conditions do not exceed the maximum ratings specified in the datasheet.
To prevent damage, handle EZPV1B406MTC by the tabs or the body, avoiding touching the leads or the component's electrical contacts. Use anti-static wrist straps, mats, or other ESD protection devices to prevent electrostatic discharge damage.
The recommended soldering profile for EZPV1B406MTC is a peak temperature of 260°C, with a dwell time of 10-30 seconds above 220°C. It's essential to follow the soldering profile recommended by Panasonic to ensure reliable solder joints.
EZPV1B406MTC is rated for operation in environments with a relative humidity of up to 60%. However, it's essential to ensure that the component is properly sealed or coated to prevent moisture ingress, especially in humid or moist environments.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EZPV1B406MTC Overview

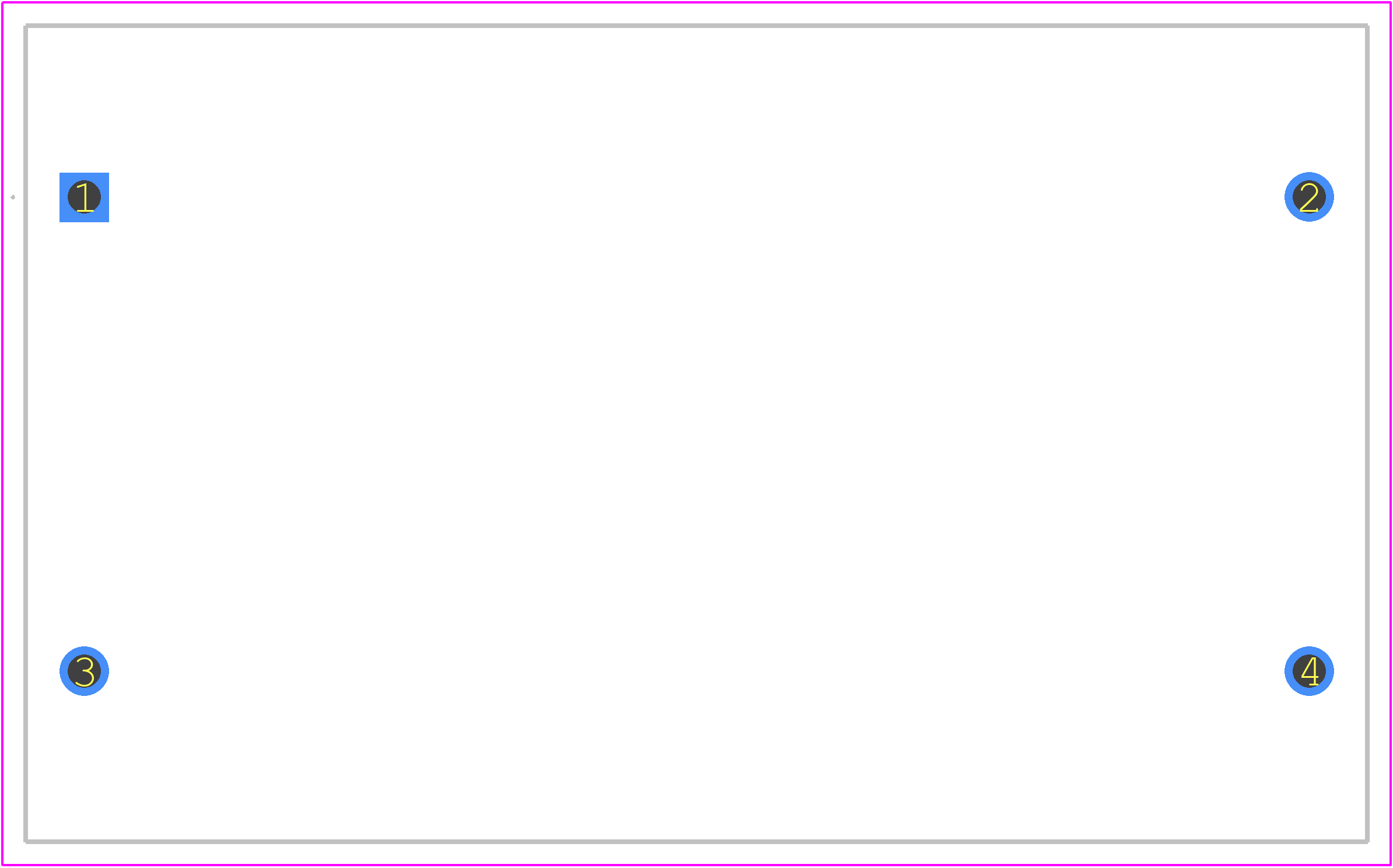

Use the download button to access the EZPV1B406MTC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EZPV1,
or try a keyword search, such as Ceramic Capacitors
