EZPV70136MDA - Panasonic

Description: Series/Type: EZPV-D, 700V DC, -40°C to 105°C, Capacitance (µF) 13, Capacitance tolerance (%) +/-10, Dielectric material MPP, L Dimension (mm) 31, T Dimension (mm) 26, H Dimension (mm) 41, Lead spacing (mm) 27.5, Short cut lead wire type, AEC-Q200 Not base on, Safety Mechanism installed

Download EZPV70136MDA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EZPV70136MDA - Panasonic - PCB symbol
click to zoom
PCB Footprints

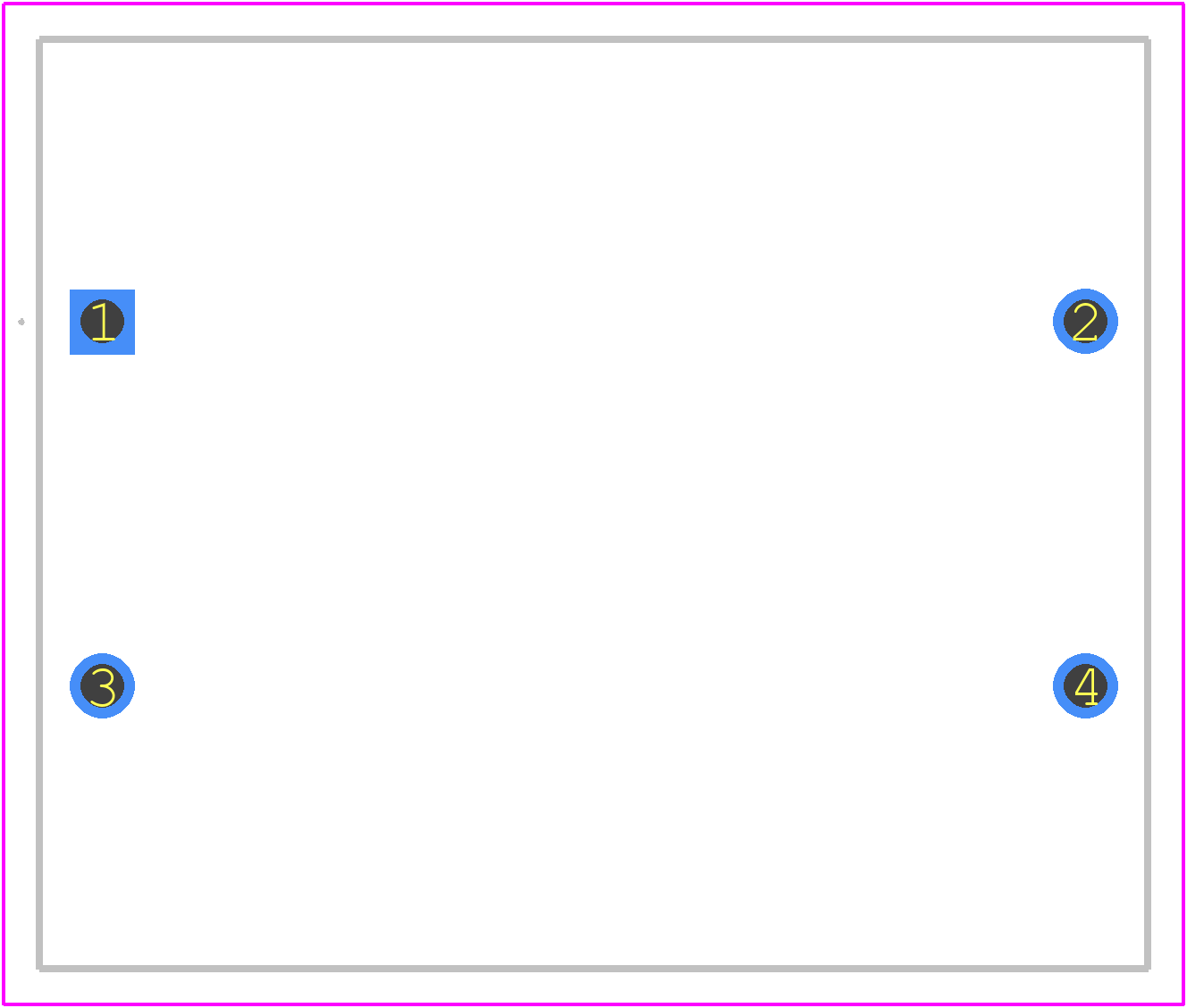

EZPV70136MDA - Panasonic PCB footprint - Other - Other - EZPV70136MDA-2
