Part Image

EZPV70146MDU - Panasonic

Description: Series/Type: EZPV-D, DC, Rated voltage (V): 700, Category Temp. Range (°C): -40 to 105 (85), Capacitance (µF): 14, Capacitance tolerance (%): +/-10, Dielectric material: MPP, L Dimension (mm): 31, T Dimension (mm): 26, H Dimension (mm): 41, Lead spacing (mm): 27.5, Short cut lead wire type, AEC-Q200: base on, Safety Mechanism: installed

Download EZPV70146MDU Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EZPV70146MDU - Panasonic - PCB symbol
click to zoom
PCB Footprints

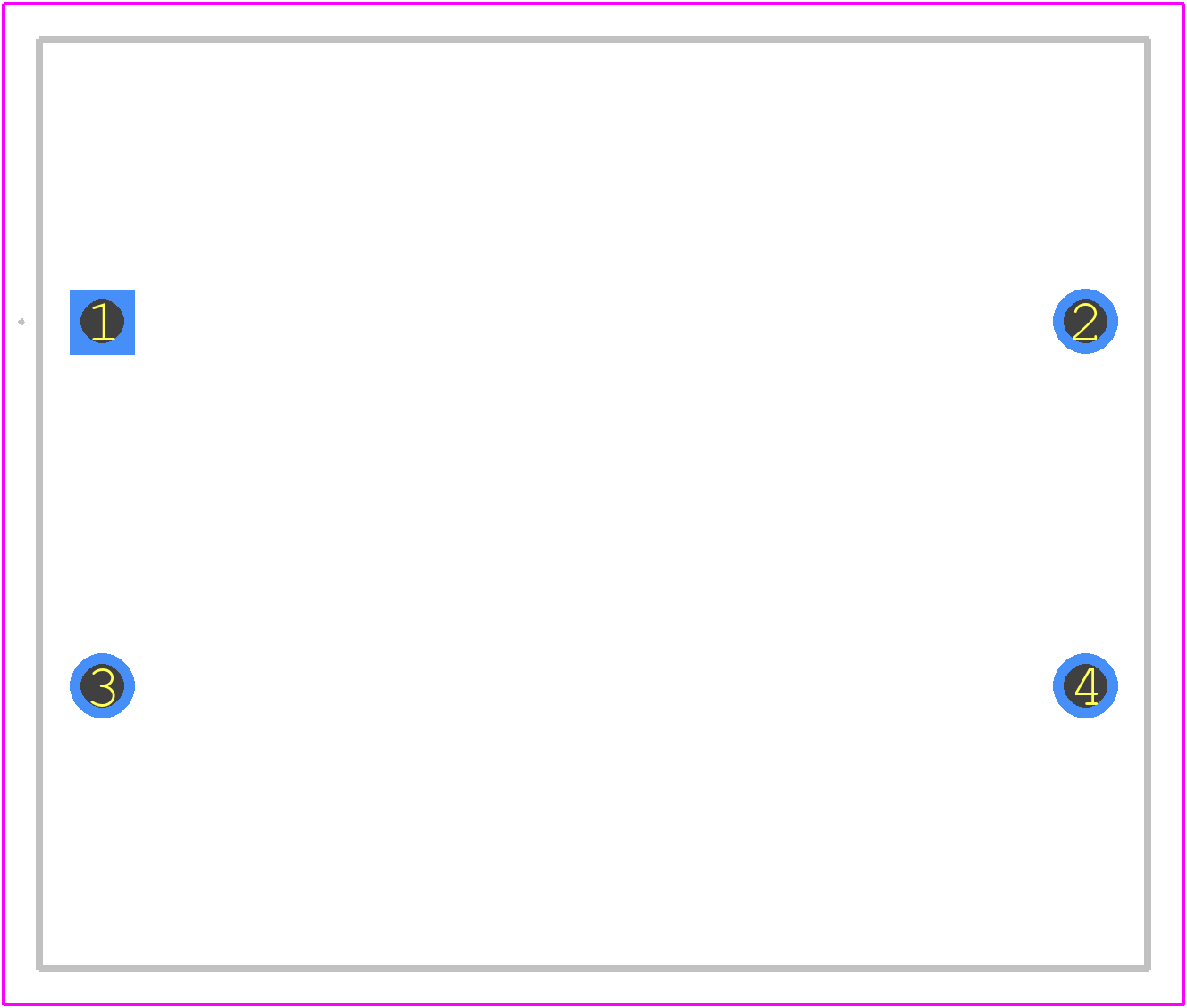

EZPV70146MDU - Panasonic PCB footprint - Other - Other - EZPV70146MDU-1
click to zoom
3D Models
EZPV70146MDU - Panasonic - 3D model - Other - EZPV70146MDU-1
click to zoom

EZPV70146MDU Details

  • Manufacturer Part Number:

    EZPV70146MDU

  • Manufacturer:

    Panasonic Electronic Components

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EZPV70146MDU Overview

Use the download button to access the EZPV70146MDU schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EZPV7, or try a keyword search, such as Ceramic Capacitors
