EZPV70156MDB - Panasonic

Description: Series/Type: EZPV-D, DC, Rated voltage (V): 700, Category Temp. Range (°C): -40 to 105 (85), Capacitance (µF): 15, Capacitance tolerance (%): +/-10, Dielectric material: MPP, L Dimension (mm): 41.5, T Dimension (mm): 22.2, H Dimension (mm): 36, Lead spacing (mm): 37.5, Short cut lead wire type, AEC-Q200: Not base on, Safety Mechanism: installed

Download EZPV70156MDB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EZPV70156MDB - Panasonic - PCB symbol
click to zoom
PCB Footprints

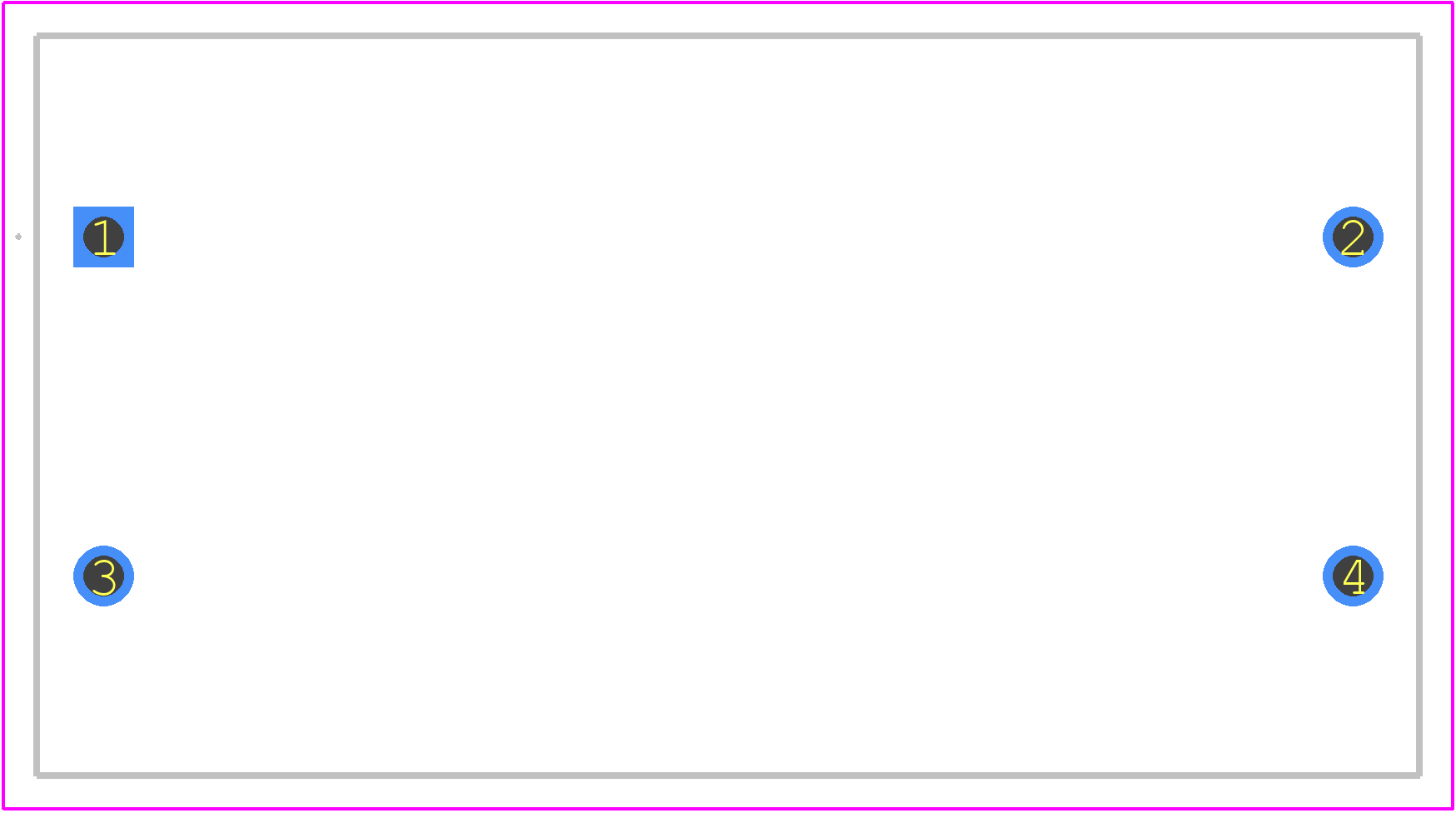

EZPV70156MDB - Panasonic PCB footprint - Other - Other - EZPV70156MDB-1
