Part Image

EZPV70406MTB - Panasonic

Description: Series/Type: EZPV, DC, Rated voltage (V): 700, Category Temp. Range (°C): -40 to 105 (85), Capacitance (µF): 40, Capacitance tolerance (%): +/-10, L Dimension (mm): 42, T (mm): 38, H (mm): 52.5, Lead spacing (mm): 37.5, (P2): 20.3

Download EZPV70406MTB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

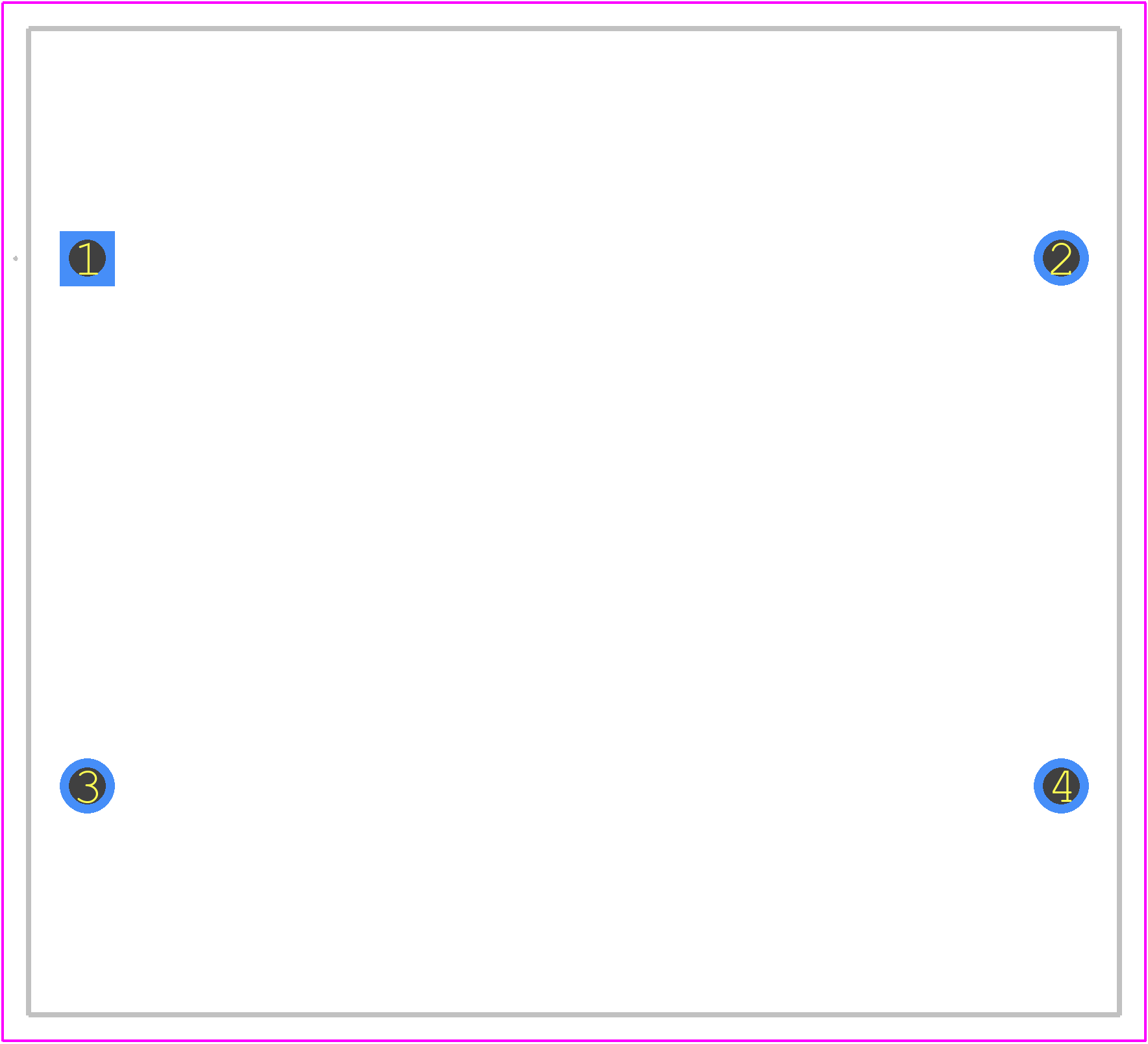

EZPV70406MTB - Panasonic PCB footprint - Other - Other - EZPV70406MTB
click to zoom
3D Models
EZPV70406MTB - Panasonic  - 3D model - Other - EZPV70406MTB
click to zoom

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EZPV70406MTB Overview

Use the download button to access the EZPV70406MTB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EZPV7, or try a keyword search, such as Film Capacitors
