Part Image

EZPV80606MDC - Panasonic

Description: Series/Type: EZPV-D, DC, Rated voltage (V): 800, Category Temp. Range (°C): -40 to 105 (85), Capacitance (µF): 60, Capacitance tolerance (%): +/-10, Dielectric material: MPP, L Dimension (mm): 57.5, T Dimension (mm): 35, H Dimension (mm): 56, Lead spacing (mm): 52.5, Short cut lead wire type, AEC-Q200: Not base on, Safety Mechanism: installed

Download EZPV80606MDC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EZPV80606MDC - Panasonic - PCB symbol
click to zoom

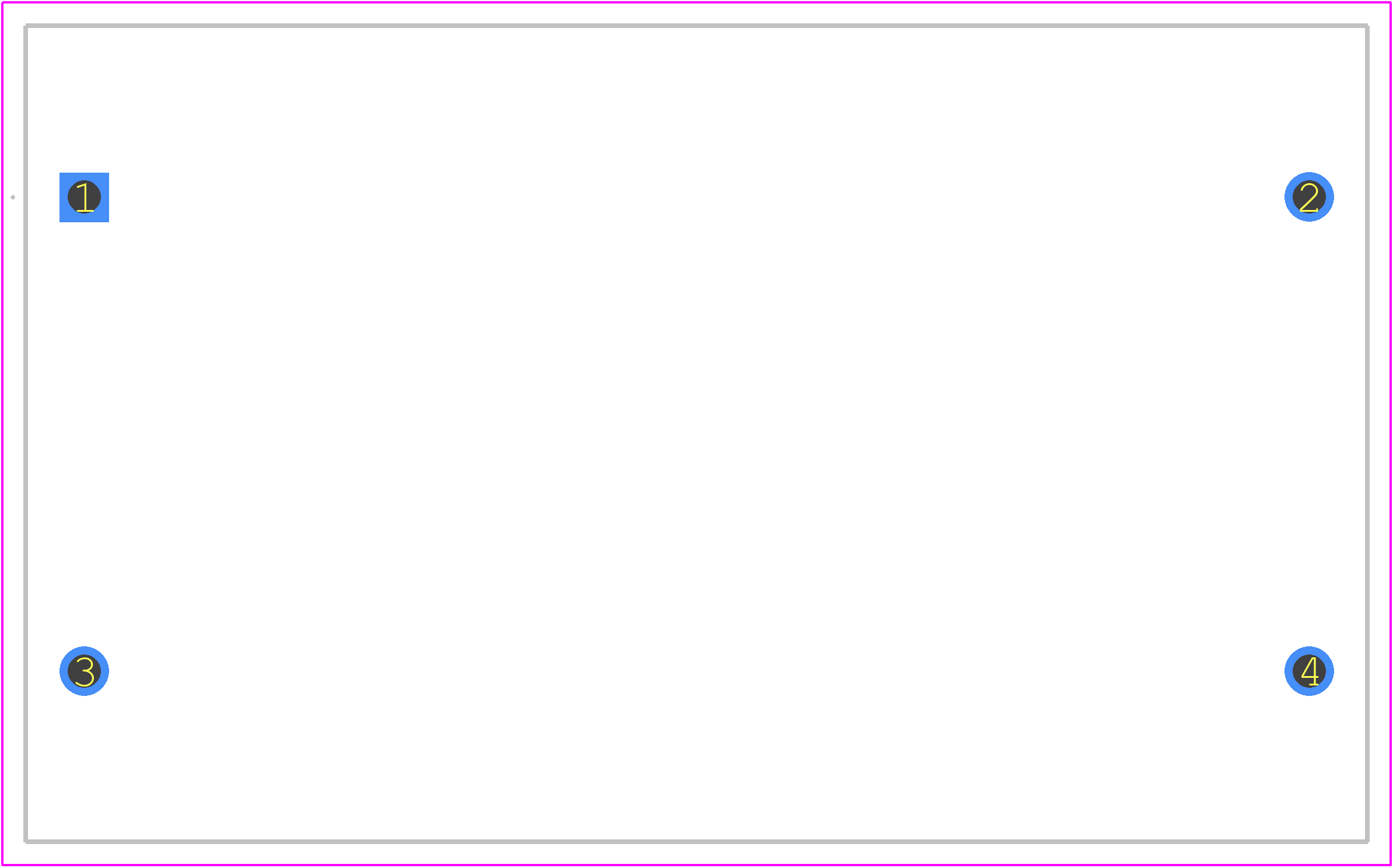

PCB Footprints
EZPV80606MDC - Panasonic PCB footprint - Other - Other - EZPV80606MDC-1
click to zoom
3D Models
EZPV80606MDC - Panasonic - 3D model - Other - EZPV80606MDC-1
click to zoom

EZPV80606MDC Details

  • Manufacturer Part Number:

    EZPV80606MDC

  • Manufacturer:

    Panasonic Electronic Components

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EZPV80606MDC Overview

Use the download button to access the EZPV80606MDC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EZPV8, or try a keyword search, such as Ceramic Capacitors
