Cosel recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to ensure optimal thermal performance.
To ensure reliable operation in high-vibration environments, Cosel recommends securing the F-CBS-F1 with screws or adhesive, and using a conformal coating to protect the device from moisture and contaminants.
The maximum allowed capacitance for the output filter capacitor is 100uF. Exceeding this value may cause instability or oscillation in the converter.
Yes, the F-CBS-F1 can be used in a redundant configuration for high-reliability applications. However, Cosel recommends consulting with their application engineers to ensure proper implementation and to discuss specific requirements.
The recommended input fuse rating for the F-CBS-F1 is 5A slow-blow. However, the actual fuse rating may vary depending on the specific application and input voltage.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
F-CBS-F1 Overview

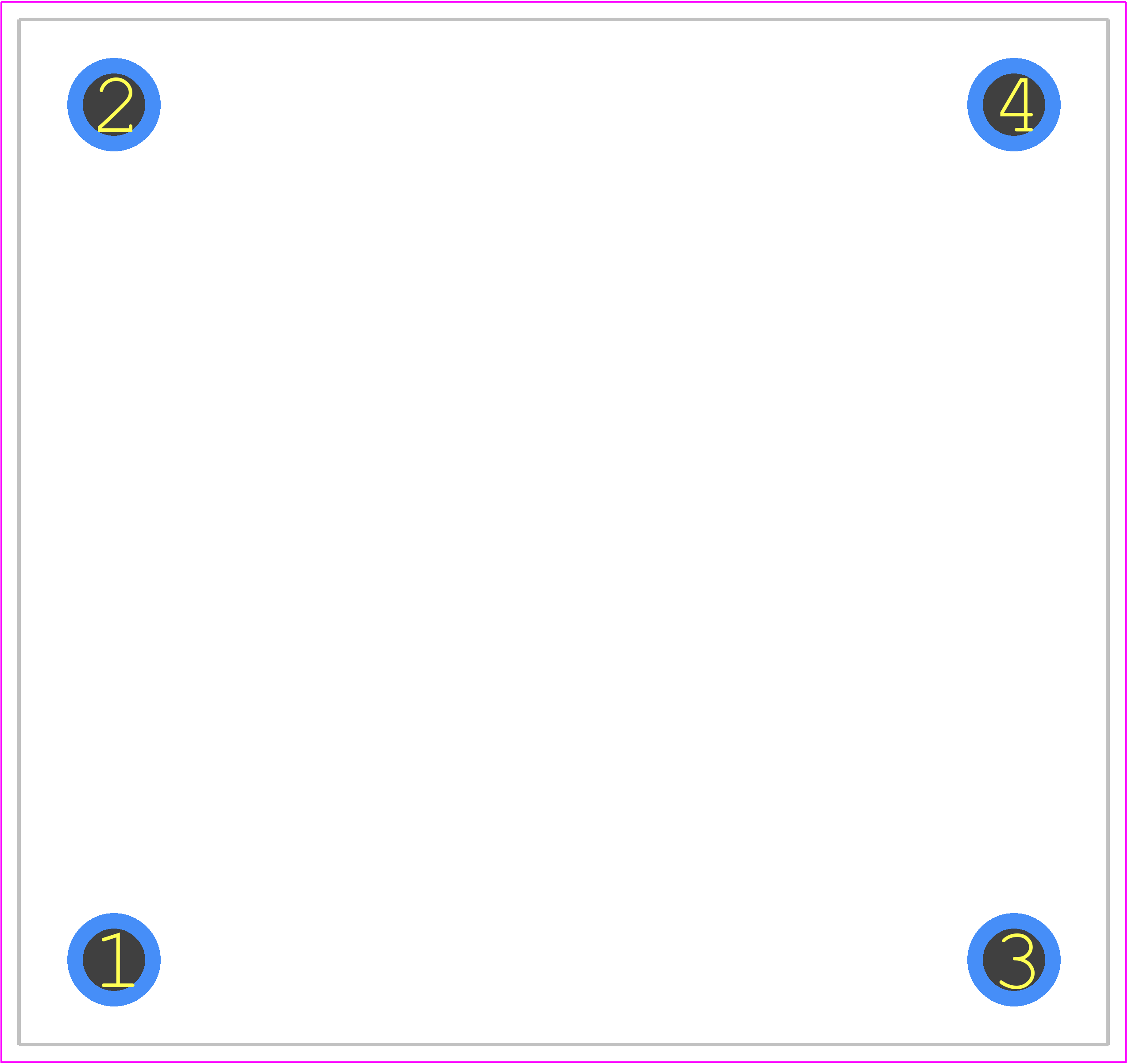

Use the download button to access the F-CBS-F1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like F-CBS,
or try a keyword search, such as Heat Sinks
