Tamura recommends a PCB layout with a solid ground plane and thermal vias to dissipate heat. A minimum of 2oz copper thickness is recommended, and the device should be placed on a heat sink or thermal pad to ensure optimal thermal management.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended derating curves and thermal management guidelines. Additionally, consider using a thermistor or thermal sensor to monitor the device temperature and implement over-temperature protection if necessary.
While the datasheet specifies the maximum operating voltage, it's essential to note that the device can withstand voltage transients or spikes up to 1.5 times the maximum operating voltage for a duration of 100ms or less. However, it's recommended to implement voltage transient protection measures, such as TVS diodes or varistors, to ensure device reliability.
Yes, the F03P006S05L is designed to meet the requirements of high-reliability and safety-critical applications. However, it's essential to follow Tamura's recommended design and testing guidelines, and to consult with Tamura's application engineers to ensure the device meets the specific requirements of your application.
The typical lead time for the F03P006S05L is 12-14 weeks, and the minimum order quantity is 1,000 pieces. However, lead times and MOQs may vary depending on the region, distribution channel, and other factors. It's recommended to check with Tamura's sales representatives or authorized distributors for the most up-to-date information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
F03P006S05L Overview

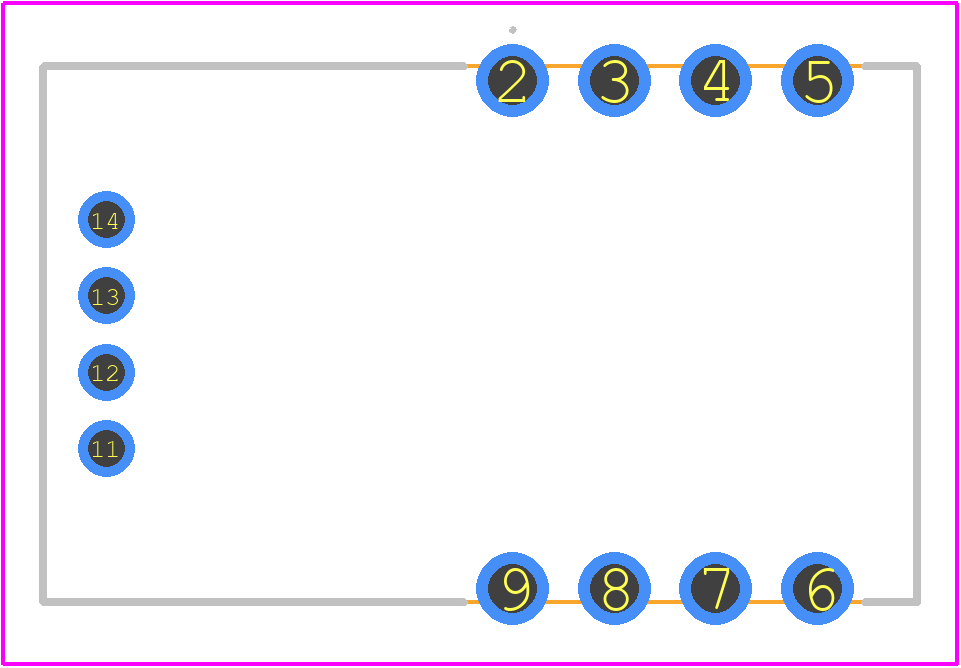

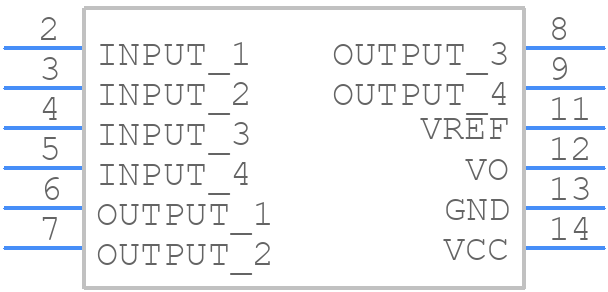

Use the download button to access the F03P006S05L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like F03P0,
or try a keyword search, such as Other Sensors/Transducers
