F0448NBGK - Renesas Electronics

Description: The F0448 is a 3.3GHz to 4.2GHz Dual RF digital variable gain amplifier (DVGA) designed for use in receivers. This Dual RF DVGA provides two independent receiver paths each with 13dB typical maximum gain and 6dB noise figure designed to operate with a single +5V supply. For each path, gain control is split into 3 separate attenuators; DSA0 a single 6dB step using a single control pin, DSA1 a 23dB SPI-controlled gain adjustment in 1dB steps, and DSA2 includes 18dB attenuation in 6dB steps controlled using tw

Download F0448NBGK Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

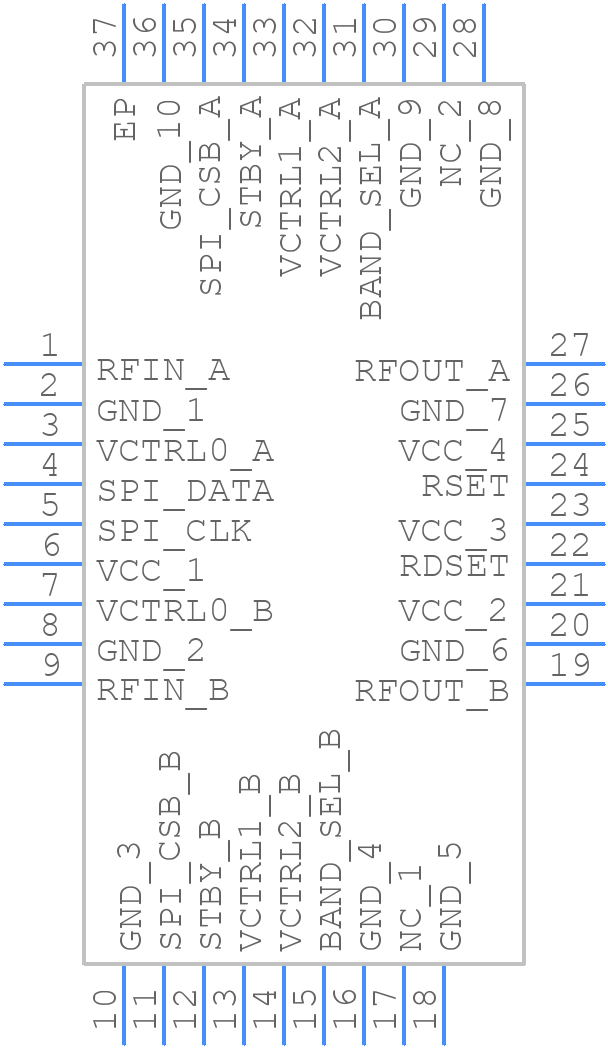

F0448NBGK - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
F0448NBGK - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - NBG36P1-+-+
click to zoom

F0448NBGK Details

  • Manufacturer Part Number:

    F0448NBGK

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Part Package Code:

    VFQFPN

  • Pin Count:

    36

  • Manufacturer Package Code:

    NBG36P2

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • YTEOL:

    7

  • RF/Microwave Device Type:

    VARIABLE GAIN AMPLIFIER

  • Terminal Finish:

    Tin (Sn)

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

F0448NBGK Overview

Use the download button to access the F0448NBGK schematic symbol and PCB footprint.
