- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for F10-250-C2
- Part Number F10-250-C2
- Manufacturer Triad Magnetics
- Pin Count 6
- Part Category Transformer
- Package Category Other

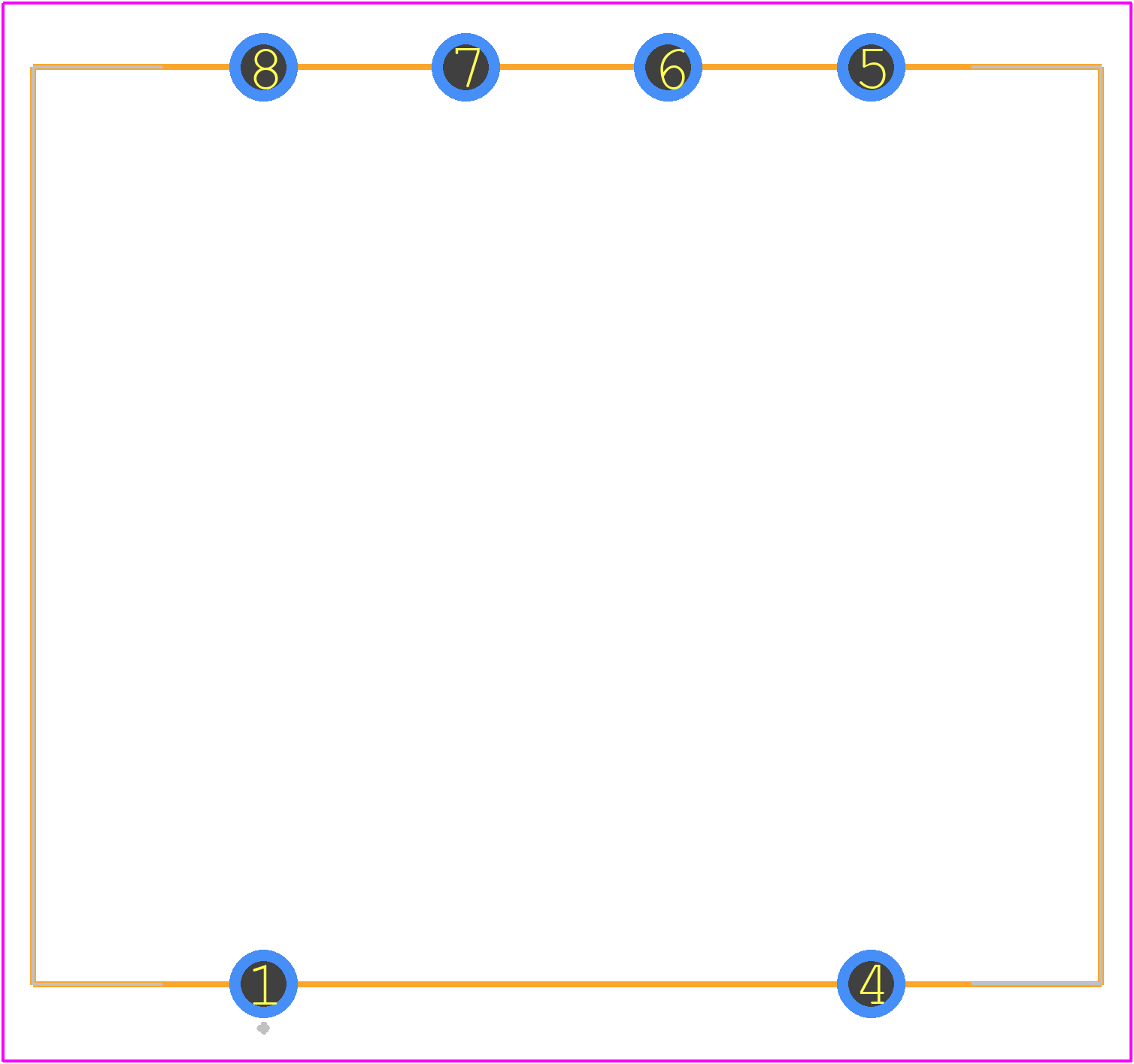

- Footprint Name Other - F10-250-C2
- Released Date Mar 4, 2018
- Last Modified Date Oct 7, 2024 5:13 AM UTC
- Pinout / Pin List Click Here (Member Only)
F10-250-C2 Details
-
Manufacturer Part Number:
F10-250-C2
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Mainland China
-
ECCN Code:
EAR99
-
HTS Code:
8504.31.40.35
-
Manufacturer:
Triad Magnetics
-
YTEOL:
5.83
-
Approvals:
CUL; UL
-
Center Tap Feature 1:
NO
F10-250-C2 Frequently Asked Questions (FAQs)
-
The recommended operating frequency range for the F10-250-C2 is 50-400 Hz, although it can be used at higher frequencies with derating.
-
Yes, the F10-250-C2 can be used in a switching power supply application, but it's essential to ensure that the transformer is designed to handle the high-frequency switching and to follow the recommended design guidelines.
-
The maximum ambient temperature rating for the F10-250-C2 is 130°C, with a maximum temperature rise of 60°C above ambient.
-
While the F10-250-C2 is a high-quality transformer, it may not meet the specific requirements for high-reliability or military applications. Triad Magnetics offers other products that are specifically designed for these applications, such as the TX product line.
-
Yes, Triad Magnetics offers customization options for the F10-250-C2, including custom windings, terminations, and packaging. Contact Triad Magnetics' sales team for more information.
Trust Checks
Expert Contribution
System Verified
Community Approved
F10-250-C2 Overview
Use the download button to access the F10-250-C2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like F10-2,
or try a keyword search, such as Power/Mains Transformers
