F10-600 - Triad Magnetics

Description: Power Transformers POWER XFMR 10.0Vct@0.600A UL/cUL 115V SPLIT PACK PCB MOUNT/F10-600

Download F10-600 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

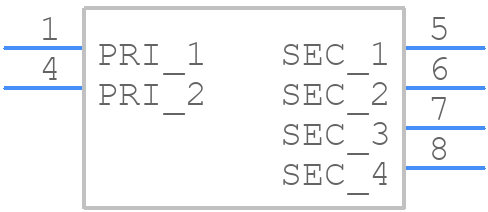

Symbol
F10-600 - Triad Magnetics - PCB symbol
click to zoom

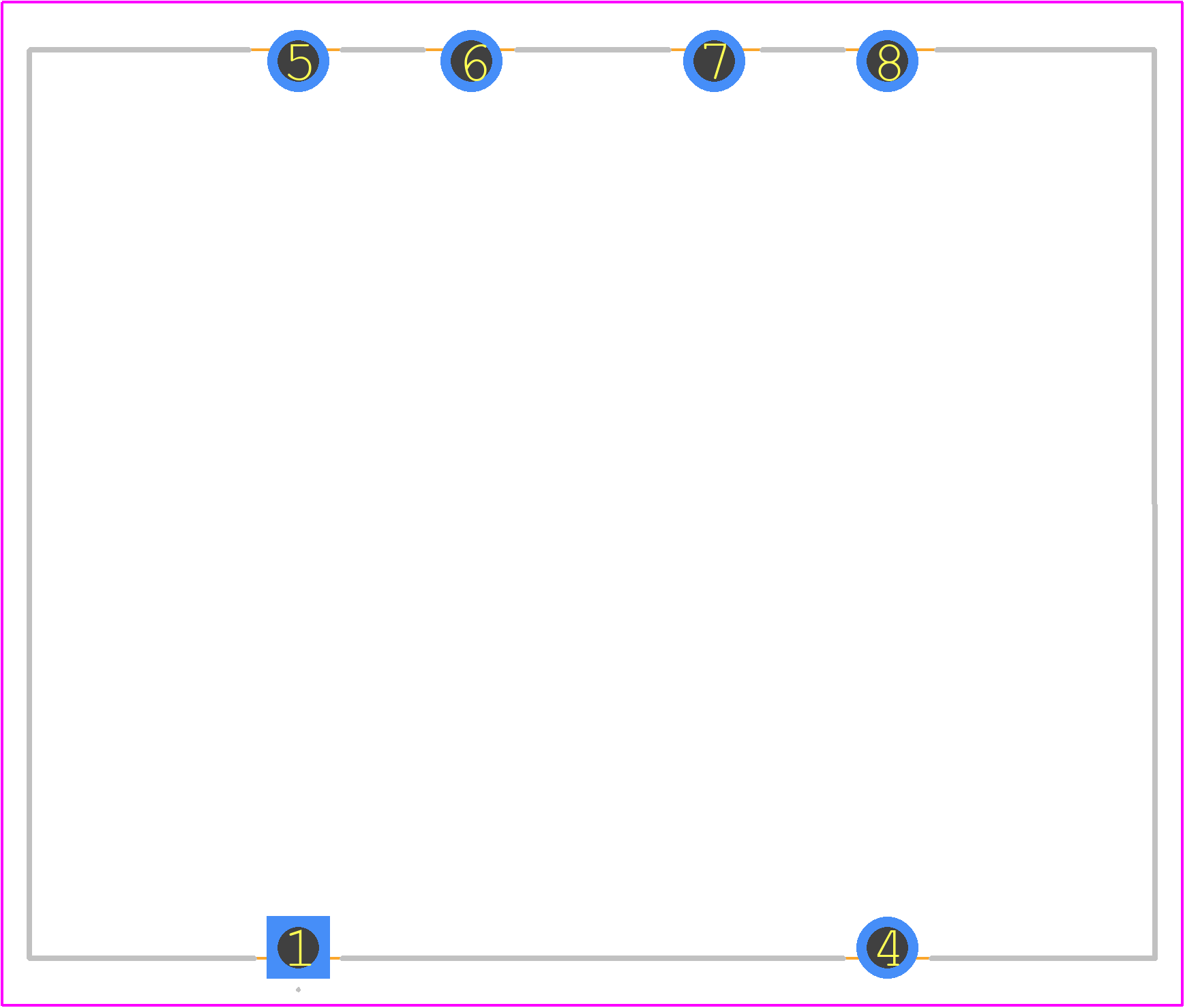

PCB Footprints
F10-600 - Triad Magnetics PCB footprint - Other - Other - 41.28mm x 33.32mm
click to zoom
3D Models
F10-600 - Triad Magnetics - 3D model - Other - 41.28mm x 33.32mm
click to zoom

F10-600 Details

  • Manufacturer Part Number:

    F10-600

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.35

  • Manufacturer:

    Triad Magnetics

  • YTEOL:

    5.83

  • Application:

    POWER

  • Approvals:

    CUL; UL

  • Center Tap Feature 1:

    NO

  • Center Tap Feature 2:

    NO

  • Height:

    33.34 mm

  • Input Voltage-Nom:

    115 V

  • Isolation Voltage:

    1500 V

  • Length:

    41.28 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    2

  • Output Current 1:

    1.2 A

  • Output Voltage 1:

    5 V

  • Output Voltage 2:

    5 V

  • Primary Rating:

    SINGLE 115V

  • Surface Mount:

    NO

  • Transformer Type:

    SPLIT BOBBIN POWER TRANSFORMER

  • VA Rating:

    6 VA

  • Width:

    33.34 mm

F10-600 Frequently Asked Questions (FAQs)

  • The F10-600 is designed to operate at frequencies between 50 kHz to 200 kHz, but it can be used up to 500 kHz with reduced performance.
  • Yes, the F10-600 can be used in a push-pull configuration, but it's essential to ensure that the primary windings are properly balanced to avoid core saturation and uneven heating.
  • The maximum allowable temperature rise for the F10-600 is 60°C above the ambient temperature, with a maximum operating temperature of 130°C.
  • The F10-600 is designed for high-voltage applications, with a maximum primary voltage rating of 600V. However, it's essential to ensure that the transformer is properly designed and constructed to meet the specific high-voltage requirements.
  • The recommended creepage distance for the F10-600 is 4.5 mm, which is the minimum distance between the primary and secondary windings to ensure electrical isolation and safety.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

F10-600 Overview

Use the download button to access the F10-600 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like F10-6, or try a keyword search, such as Power/Mains Transformers
