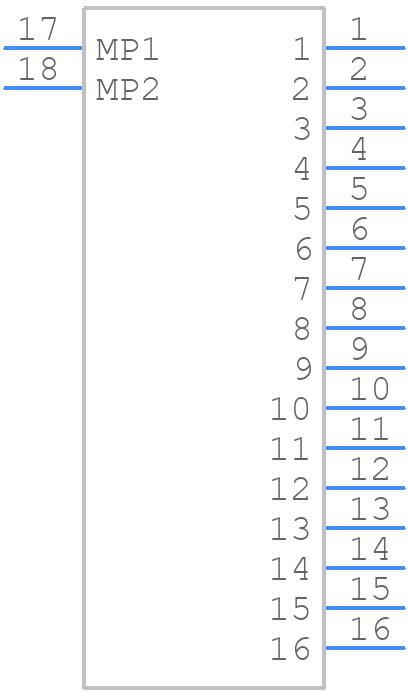

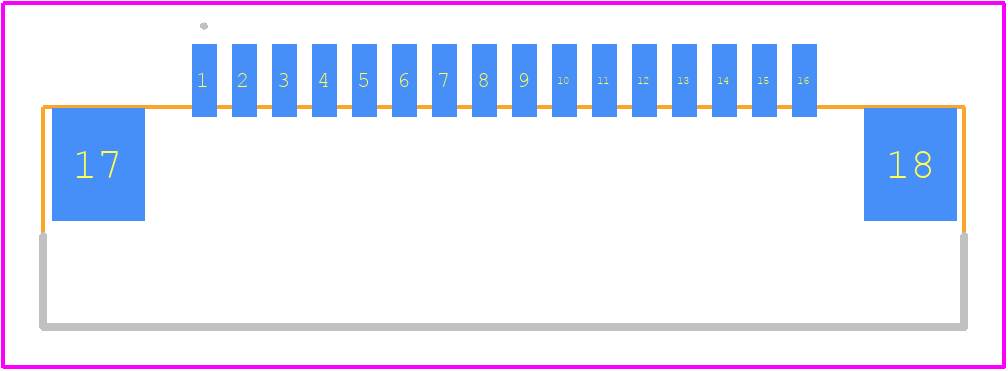

F1003WR-S-16PT - HR(Joint Tech Elec)

F1003WR-S-16PT Details

• Manufacturer Part Number:

  F1003WR-S-16PT

• Part Life Cycle Code:

  Contact Manufacturer

• ECCN Code:

  EAR99

• Manufacturer:

  Joint Tech Electronic Industrial Co Ltd

• YTEOL:

  2

• Board Mounting Option:

  SOLDER HOLDING POSTS

• Body Breadth:

  0.104 inch

• Body Depth:

  0.217 inch

• Body Length:

  0.906 inch

• Connector Type:

  FFC/FPC CONNECTOR

• Contact Finish Mating:

  SN

• Contact Material:

  PHOSPHOR BRONZE

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  30 mΩ

• Contact Style:

  SINGLE PRONG

• Dielectric Withstanding Voltage:

  500VAC V

• Filter Feature:

  NO

• Insertion Force-Max:

  ZIF N

• Insulation Resistance:

  500000000 Ω

• Insulator Color:

  BEIGE

• Insulator Material:

  POLYAMIDE

• Mating Contact Pitch:

  0.039 inch

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  1

• Number of Rows Loaded:

  1

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• PCB Contact Pattern:

  RECTANGULAR

• Rated Current (Signal):

  0.5 A

• Reference Standard:

  UL

• Terminal Pitch:

  0.9906 mm

• Termination Type:

  SURFACE MOUNT

• Total Number of Contacts:

  16
