F11-10012042R - Harwin

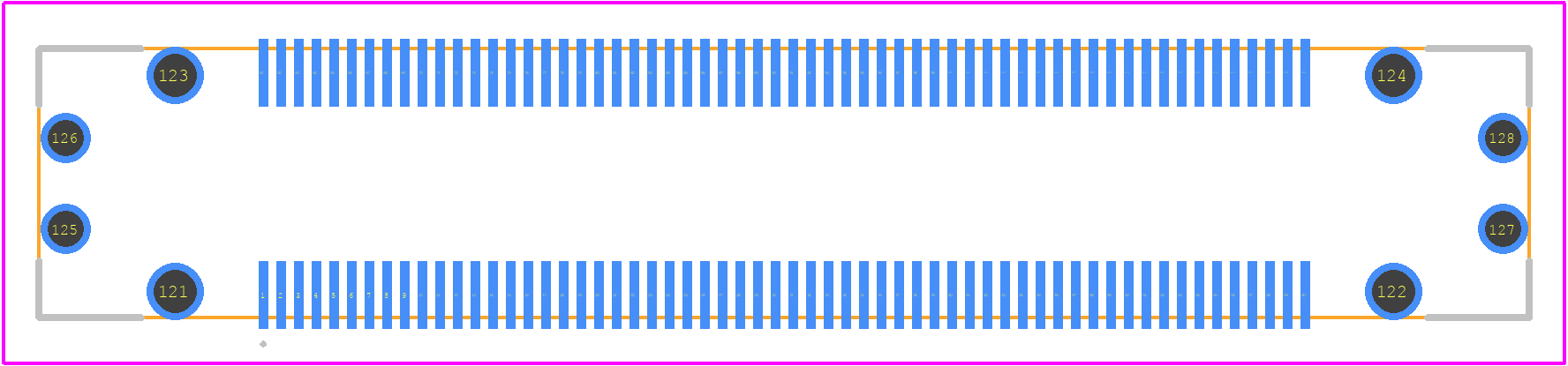

F11-10012042R Details

• Manufacturer Part Number:

  F11-10012042R

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Manufacturer:

  Harwin

• YTEOL:

  9

• Board Mounting Option:

  LOCATING POSTS

• Body Breadth:

  0.299 inch

• Body Depth:

  0.268 inch

• Body Length:

  1.661 inch

• Body/Shell Style:

  RECEPTACLE

• Connector Type:

  BOARD STACKING CONNECTOR

• Contact Arrangement:

  S120P4

• Contact Gender:

  FEMALE

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  80 mΩ

• Contact Style:

  BELLOWED TYPE

• Dielectric Withstanding Voltage:

  150AC/DC V

• Durability:

  100 Cycles

• Filter Feature:

  NO

• Insertion Force-Max:

  0.8 N

• Insulation Resistance:

  100000000 Ω

• Insulator Color:

  BLACK

• Insulator Material:

  LIQUID CRYSTAL POLYMER

• Mating Contact Pitch:

  0.019 inch

• Mixed Contacts:

  YES

• Mounting Option 1:

  LOCKING

• Mounting Style:

  STRAIGHT

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -55 °C

• Option:

  GENERAL PURPOSE

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  6.1 mm

• Plating Thickness:

  FLASH inch

• Polarization Key:

  POLARIZED HOUSING

• Rated Current (Power):

  3 A

• Rated Current (Signal):

  0.5 A

• Reference Standard:

  UL

• Terminal Length:

  0.053 inch

• Terminal Pitch:

  0.5 mm

• Termination Type:

  SOLDER AND SURFACE MOUNT

• Total Number of Contacts:

  124

• UL Flammability Code:

  94V-0

• Withdrawl Force-Min:

  0.1 N
