F1150NBGI - Renesas Electronics

Description: The IDT F1150 dual channel device is designed to operate with a single 5V supply. It is optimized for operation in a Multi-mode, Multi-carrier BaseStation Receiver for RF bands from 1700 - 2200 MHz with High Side Injection. IF frequencies from 50 to 450 MHz are supported. Nominally, the device offers +40 dBm Output IP3 with 335 mA of ICC. Alternately one can adjust 4 resistor values and a toggle pin to run the device in low current mode with +36 dBm Output IP3 and 235 mA of ICC.A member of IDT’s Zero-Distor

Download F1150NBGI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

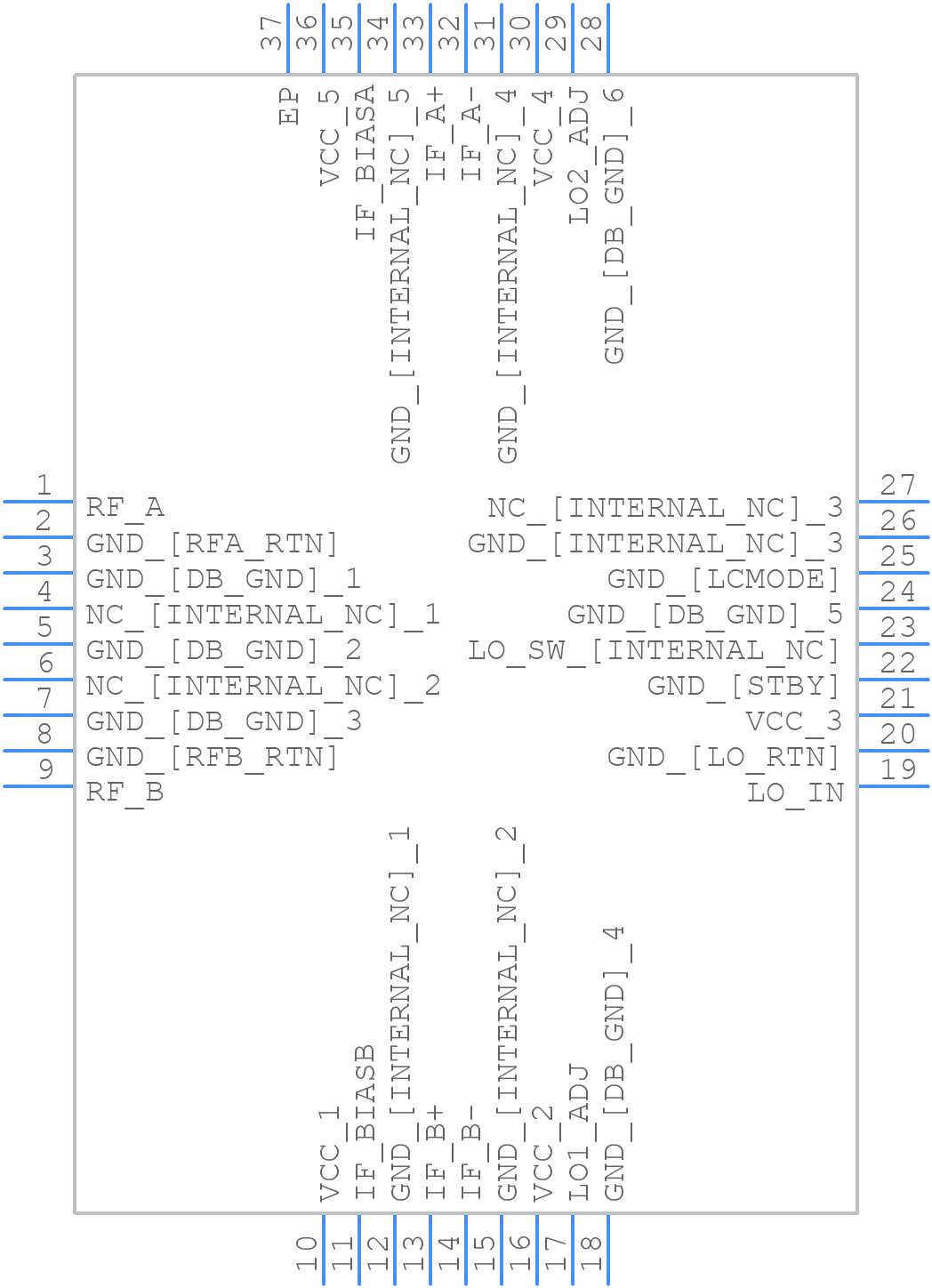

F1150NBGI - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
F1150NBGI - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - NBG36P1
click to zoom
3D Models
F1150NBGI - Renesas Electronics - 3D model - Quad Flat No-Lead - NBG36P1
click to zoom

F1150NBGI Details

  • Manufacturer Part Number:

    F1150NBGI

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Part Package Code:

    VFQFPN

  • Pin Count:

    36

  • Manufacturer Package Code:

    NBG36P1

  • Country Of Origin:

    Mainland China, Malaysia, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • RF/Microwave Device Type:

    DOWN CONVERTER

  • Terminal Finish:

    Matte Tin (Sn)
