F1152NBGI - Renesas Electronics

Description: The IDT F1152 dual channel device is designed to operate with a single 5V supply. It is optimized for operation in a Multi-mode, Multi-carrier BaseStation Receiver for RF bands from 1700 - 2200 MHz with Low Side Injection. IF frequencies from 50 to 350 MHz are supported. Nominally, the device offers +42 dBm Output IP3 with 335 mA of ICC. Alternately one can adjust 4 resistor values and a toggle pin to run the device in low current mode with +37 dBm Output IP3 and 235 mA of ICC.A member of IDT’s Zero-Distort

Download F1152NBGI Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

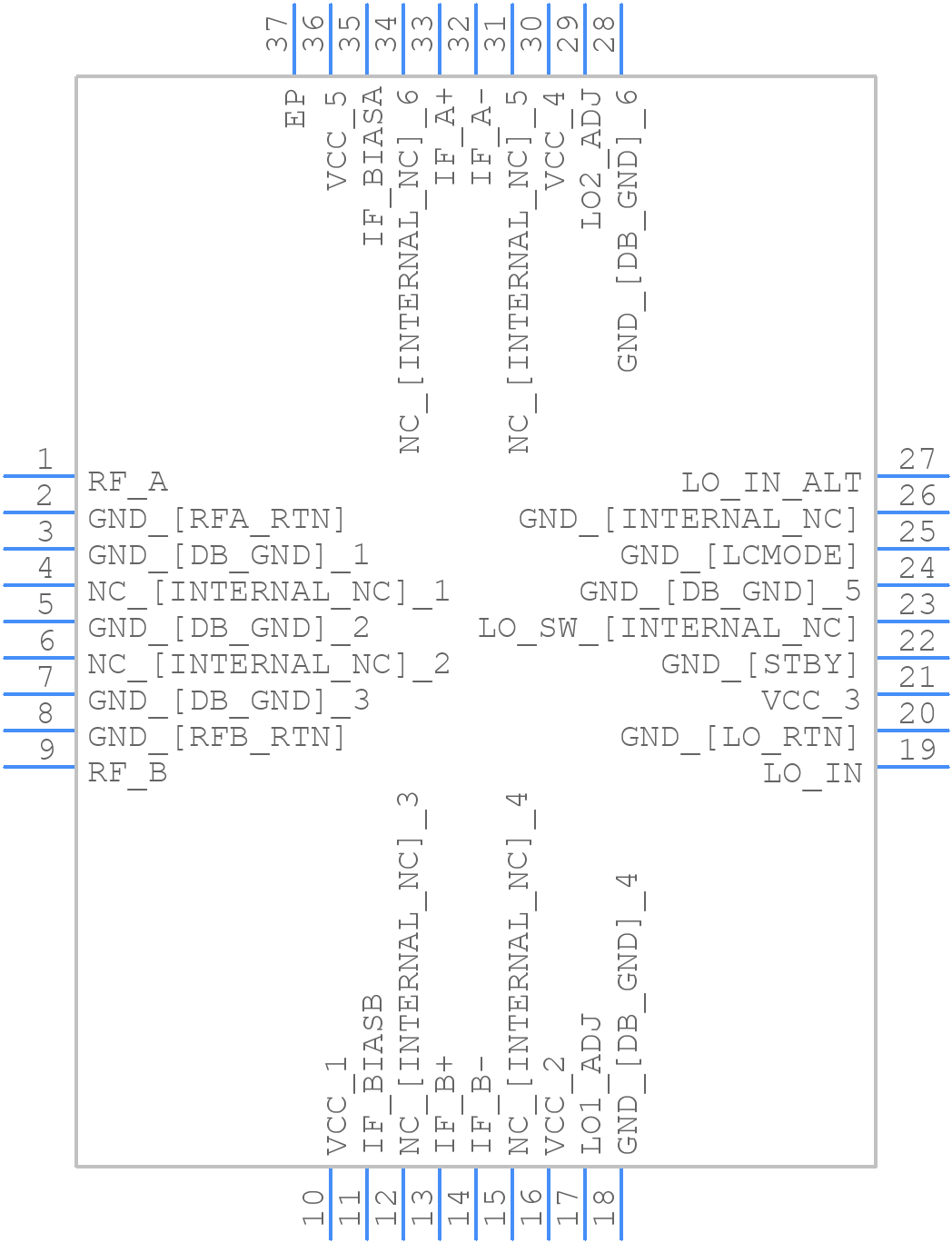

F1152NBGI - Renesas Electronics - PCB symbol
click to zoom
PCB Footprints
F1152NBGI - Renesas Electronics PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - qfn25
click to zoom
3D Models
F1152NBGI - Renesas Electronics - 3D model - Quad Flat No-Lead - qfn25
click to zoom

F1152NBGI Details

  • Manufacturer Part Number:

    F1152NBGI

  • Brand Name:

    Renesas

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Part Package Code:

    VFQFPN

  • Pin Count:

    36

  • Manufacturer Package Code:

    NBG36P1

  • Country Of Origin:

    Mainland China, Malaysia, Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Renesas Electronics Corporation

  • RF/Microwave Device Type:

    DOWN CONVERTER

  • Terminal Finish:

    Matte Tin (Sn)

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

F1152NBGI Overview

Use the download button to access the F1152NBGI schematic symbol, PCB footprint, and 3D model.
