F12-090-C2 - Triad Magnetics

Description: Power Transformers PC/1.1VA/6P/Class2/3 12.6VCT@0.09A Series

Download F12-090-C2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

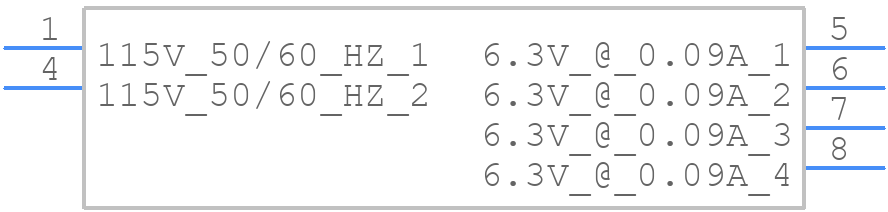

Symbol
F12-090-C2 - Triad Magnetics - PCB symbol
click to zoom

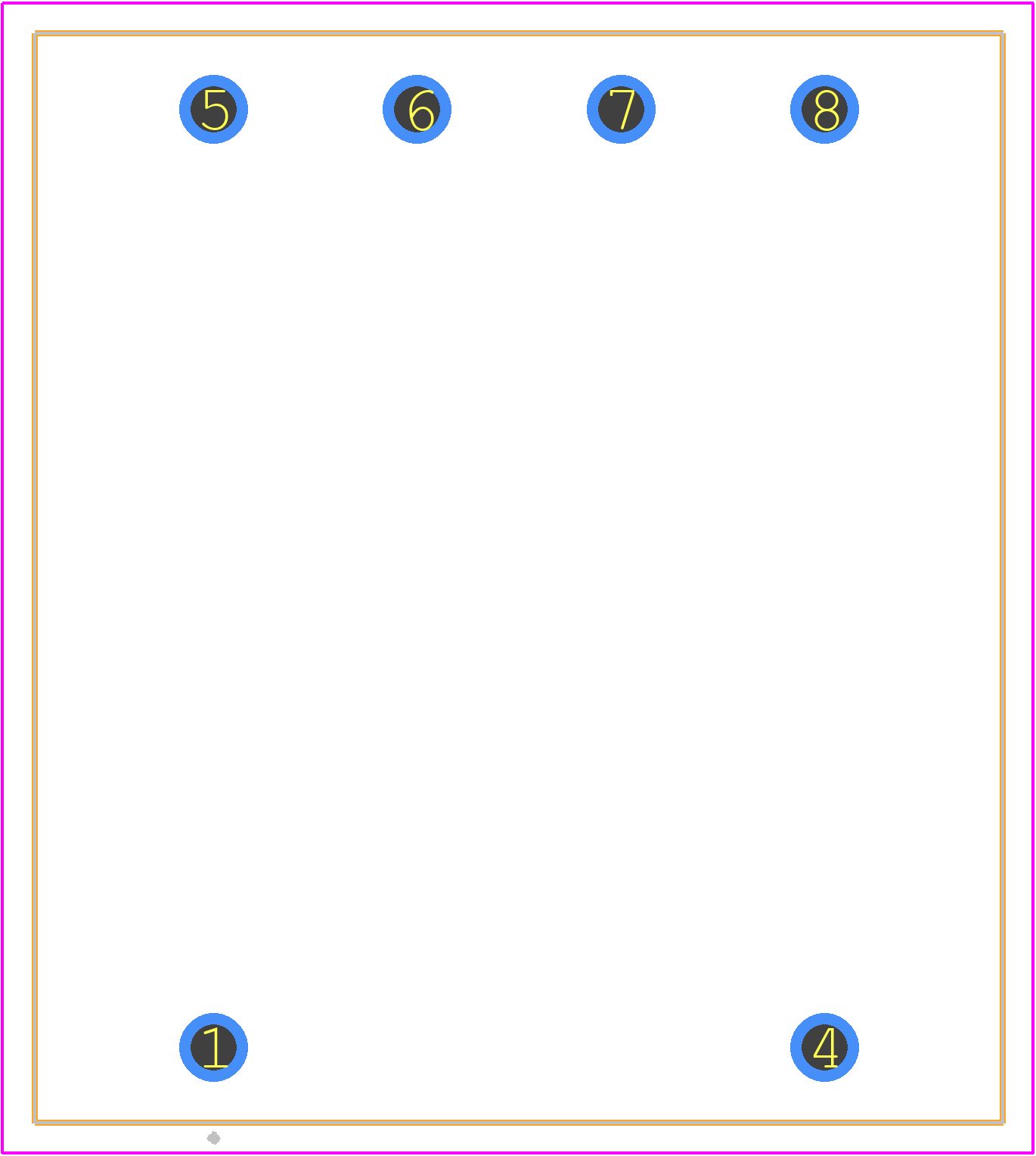

PCB Footprints
F12-090-C2 - Triad Magnetics PCB footprint - Other - Other - F12-090-C2-3
click to zoom
3D Models
F12-090-C2 - Triad Magnetics - 3D model - Other - F12-090-C2-3
click to zoom

F12-090-C2 Details

  • Manufacturer Part Number:

    F12-090-C2

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8504.31.40.35

  • Manufacturer:

    Triad Magnetics

  • YTEOL:

    5.83

  • Approvals:

    CUL; UL

  • Center Tap Feature 1:

    NO

  • Center Tap Feature 2:

    NO

  • Height:

    23.81 mm

  • Input Voltage-Nom:

    115 V

  • Isolation Voltage:

    1500 V

  • Length:

    34.93 mm

  • Mounting Feature:

    THROUGH HOLE MOUNTED

  • Number of Secondary Winding:

    2

  • Output Current 1:

    0.18 A

  • Output Voltage 1:

    6.3 V

  • Output Voltage 2:

    6.3 V

  • Primary Rating:

    SINGLE 115V

  • Surface Mount:

    NO

  • Transformer Type:

    SPLIT BOBBIN POWER TRANSFORMER

  • VA Rating:

    1.1 VA

  • Width:

    28.58 mm

F12-090-C2 Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for F12-090-C2 is -40°C to 125°C, with a maximum storage temperature of 150°C.
  • Yes, F12-090-C2 is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10G peak acceleration.
  • Yes, F12-090-C2 is designed to operate in high-humidity environments, with a humidity rating of 95% RH at 40°C.
  • Triad Magnetics recommends a minimum PCB spacing of 0.25 inches (6.4 mm) between the transformer and other components, and a minimum PCB thickness of 0.062 inches (1.57 mm).
  • Yes, F12-090-C2 is designed to meet the requirements for use in Class I, Division 2 hazardous locations, as defined by the National Electric Code (NEC).

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

F12-090-C2 Overview

Use the download button to access the F12-090-C2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like F12-0, or try a keyword search, such as Power/Mains Transformers
